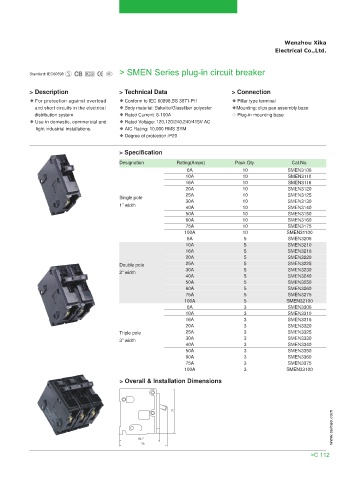

> SMEN Series plug-in circuit breaker
Standard: IEC60898
> Description > Technical Data > Connection
For protection against overload Conform to IEC 60898,BS 3871-Pt1 Pillar type terminal
and short circuits in the electrical Body material: Bakelite/Glassfiber polyester Mounting: clips pan assembly base
distribution system. Rated Current: 6-100A Plug-in mounting base
Use in domestic, commercial and Rated Voltage: 120,120/240,240/415V AC
light industrial installations. AIC Rating: 10,000 RMS SYM
Degree of protection:IP20
> Specification
Designation Rating(Amps) Pack Qty. Cat.No.
6A 10 SMEN3106
10A 10 SMEN3110
16A 10 SMEN3116
20A 10 SMEN3120
Single pole 25A 10 SMEN3125
30A
10
1” width 40A 10 SMEN3130
SMEN3140
50A 10 SMEN3150
60A 10 SMEN3160
75A 10 SMEN3175
100A 10 SMEN31100
6A 5 SMEN3206
10A 5 SMEN3210
16A 5 SMEN3216
20A 5 SMEN3220
Double pole 25A 5 SMEN3225
2” width 30A 5 SMEN3230
40A 5 SMEN3240
50A 5 SMEN3250
60A 5 SMEN3260
75A 5 SMEN3275
100A 5 SMEN32100
6A 3 SMEN3306
10A 3 SMEN3310
16A 3 SMEN3316
20A 3 SMEN3320
Triple pole 25A 3 SMEN3325
3” width 30A 3 SMEN3330
40A 3 SMEN3340
50A 3 SMEN3350
60A 3 SMEN3360
75A 3 SMEN3375
100A 3 SMEN33100
> Overall & Installation Dimensions
