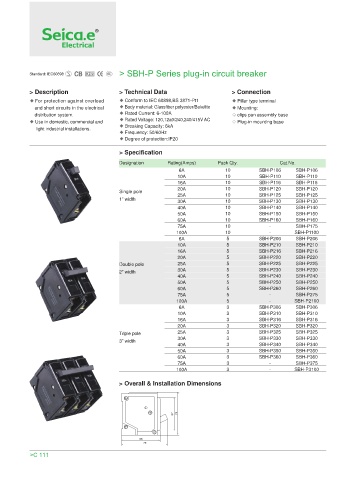

> SBH-P Series plug-in circuit breaker
Standard: IEC60898
> Description > Technical Data > Connection
For protection against overload Conform to IEC 60898,BS 3871-Pt1 Pillar type terminal
and short circuits in the electrical Body material: Glassfiber polyester/Bakelite Mounting:
distribution system. Rated Current: 6-100A clips pan assembly base
Use in domestic, commercial and Rated Voltage: 120,12a0/240,240/415V AC Plug-in mounting base
light industrial installations. Breaking Capacity: 6kA
Frequency: 50/60Hz
Degree of protection:IP20
> Specification
Designation Rating(Amps) Pack Qty. Cat.No.
6A 10 SBH-P106 SBH-P106
10A 10 SBH-P110 SBH-P110
16A 10 SBH-P116 SBH-P116
20A 10 SBH-P120 SBH-P120
Single pole 25A 10 SBH-P125 SBH-P125
1” width 30A 10 SBH-P130 SBH-P130
40A 10 SBH-P140 SBH-P140
50A 10 SBH-P150 SBH-P150
60A 10 SBH-P160 SBH-P160
75A 10 - SBH-P175
100A 10 - SBH-P1100
6A 5 SBH-P206 SBH-P206
10A 5 SBH-P210 SBH-P210
16A 5 SBH-P216 SBH-P216
20A 5 SBH-P220 SBH-P220
Double pole 25A 5 SBH-P225 SBH-P225
2” width 30A 5 SBH-P230 SBH-P230
40A 5 SBH-P240 SBH-P240
50A 5 SBH-P250 SBH-P250
60A 5 SBH-P260 SBH-P260
75A 5 - SBH-P275
100A 5 - SBH-P2100
6A 3 SBH-P306 SBH-P306
10A 3 SBH-P310 SBH-P310
16A 3 SBH-P316 SBH-P316
20A 3 SBH-P320 SBH-P320
Triple pole 25A 3 SBH-P325 SBH-P325
3” width 30A 3 SBH-P330 SBH-P330
40A 3 SBH-P340 SBH-P340
50A 3 SBH-P350 SBH-P350
60A 3 SBH-P360 SBH-P360
75A 3 - SBH-P375
100A 3 - SBH-P3100
> Overall & Installation Dimensions
