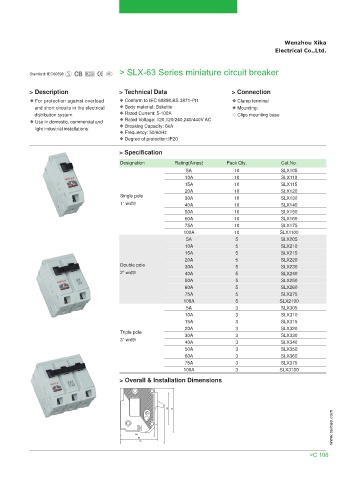

> SLX-63 Series miniature circuit breaker
Standard: IEC60898

> Description > Technical Data > Connection
For protection against overload Conform to IEC 60898,BS 3871-Pt1 Clamp terminal
and short circuits in the electrical Body material: Bakelite Mounting:
distribution system. Rated Current: 5-100A Clips mounting base
Use in domestic, commercial and Rated Voltage: 120,120/240,240/440V AC
light industrial installations. Breaking Capacity: 6kA
Frequency: 50/60Hz
Degree of protection:IP20

> Specification
Designation Rating(Amps) Pack Qty. Cat.No.
5A 10 SLX105
10A 10 SLX110
15A 10 SLX115
20A 10 SLX120
Single pole 30A 10 SLX130
1” width 40A 10 SLX140
50A 10 SLX150
60A 10 SLX160
75A 10 SLX175
100A 10 SLX1100
5A 5 SLX205
10A 5 SLX210
15A 5 SLX215
20A 5 SLX220
Double pole 30A 5 SLX230
2” width 40A 5 SLX240
50A 5 SLX250
60A 5 SLX260
75A 5 SLX275
100A 5 SLX2100
5A 3 SLX305
10A 3 SLX310
15A 3 SLX315
20A 3 SLX320
Triple pole 30A 3 SLX330
3” width 40A 3 SLX340
50A 3 SLX350
60A 3 SLX360
75A 3 SLX375
100A 3 SLX3100
> Overall & Installation Dimensions
