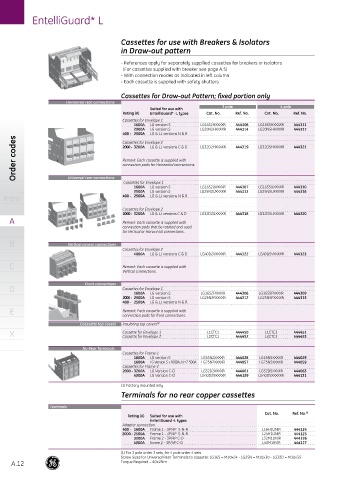

EntelliGuard* L

Cassettes for use with Breakers & Isolators
in Draw-out pattern

- References apply for separately suppllied cassettes for breakers or isolators
(For cassettes supplied with breaker see page A.5)
- With connection modes as indicated in left column
- Each cassette is supplied with safety shutters

Cassettes for Draw-out Pattern; fixed portion only
Horizontal rear connections
Suited for use with 3 pole 4 pole
Rating (A) EntelliGuard* -L types Cat. No. Ref. No. Cat. No. Ref. No.
Cassettes for Envelope 1
1600A LG version S LG16S2HXXXXR 444308 LG16S5HXXXXR 444311
2000A LG version S LG20N2HXXXXR 444314 LG20N5HXXXXR 444317
400 - 2500A LG & LJ versions N & R
Order codes 2000 - 3200A LG & LJ versions C & D LG32D2HXXXXR 444319 LG32D5HXXXXR 444321
Cassettes for Envelope 2

Remark: Each cassette is supplied with
connection pads for Horizontal connections.
Universal rear connections
Cassettes for Envelope 1
1600A LG version S LG16S2UXXXXR 444307 LG16S5UXXXXR 444310
2500A LG version S LG25N2UXXXXR 444313 LG25N5UXXXXR 444316
Intro 400 - 2500A LG & LJ versions N & R
Cassettes for Envelope 2
2000 - 3200A LG & LJ versions C & D LG32D2UXXXXR 444318 LG32D5UXXXXR 444320
A Remark: Each cassette is supplied with
connection pads that be rotated and used
for Vertical or Horizontal connections.
B Vertical access connections
Cassettes for Envelope 2
4000A LG & LJ versions C & D LG40D2VXXXXR 444322 LG40D5VXXXXR 444323
C Remark: Each cassette is supplied with
Vertical connections.

Front connections
D Cassettes for Envelope 1
1600A LG version S LG16S2FXXXXR 444306 LG16S5FXXXXR 444309
2000 - 2500A LG version S LG25N2FXXXXR 444312 LG25N5FXXXXR 444315
400 - 2500A LG & LJ versions N & R
E Remark: Each cassette is supplied with
connection pads for front connections.
Casssette top covers Insulating top covers (1)
X Cassette for Envelope 1 L1CTC1 444450 L1CTC3 444451
444453
444452
L2CTC3
L2CTC1
Cassette for Envelope 2
No Rear Terminals
Cassettes for Frame-1
1600A LG version S LG16N2XXXXR 444028 LG16N5XXXXR 444029
1600A LG Version S >1600A, N ≤2 500A LG25N2XXXXR 444057 LG25N5XXXXR 444059
Cassettes for Frame-2
2000 - 3200A LG Version C-D LG32D2XXXXR 444061 LG32D5XXXXR 444063
4000A LG Version C-D LG40D2XXXXXR 444129 LG40D5XXXXXR 444131
(1) Factory mounted only
Terminals for no rear copper cassettes

Terminals
Cat. No. Ref. No. (1)
Rating (A) Suited for use with
EntelliGuard -L types
Adapter connection
400 - 1600A Frame 1 - 3P/4P S-N-R L16H1UNIR 444124
2000 - 2500A Frame 1 - 3P/4P S-N-R L25H1UNIR 444125
3200A Frame 2 - 3P/4P C-D L32M1UNIR 444126
4000A frame 2 - 3P/4P C-D L40M1RVIR 444127
(1) For 3 pole order 3 sets, for 4 pole order 4 sets
Screw Sizes for Universal Rear Terminals to cassette: LG16S = M10x24 - LG25N = M10x30 - LG32D = M10x35
A.12 Torque Required = 40±2Nm
