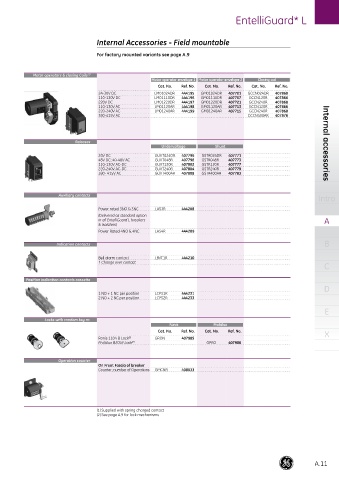

EntelliGuard* L

Internal Accessories - Field mountable

For factory mounted variants see page A.9

Motor operators & closing Coils (1)
Motor operator envelope 1 Motor operator envelope 2 Closing coil
Cat. No. Ref. No. Cat. No. Ref. No. Cat. No. Ref. No.
24-30V DC LM01024DR 444195 GM01024DR 407701 GCCN024DR 407860
110-130V DC LM01110DR 444196 GM01110DR 407707 GCCN120R 407866
220V DC LM01220DR 444197 GM01220DR 407721 GCCN240R 407868
110-130V AC LM01120AR 444198 GM01120AR 407713 GCCN120R 407866
220-240V AC LM01240AR 444199 GM01240AR 407715 GCCN240R 407868
380-415V AC GCCN400AR 407876

Releases Internal accessories
Undervoltage Shunt
24V DC GUVT024DR 407796 GSTR024DR 407771
48V DC; 40-48V AC GUVT048R 407798 GSTR048R 407773
110-130V AC-DC GUVT120R 407802 GSTR120R 407777
220-240V AC-DC GUVT240R 407804 GSTR240R 407779
380- 415V AC GUVT400AR 407808 GSTR400AR 407783

Auxiliary contacts
Intro
Power rated 3NO & 3NC LAS3R 444208
(Delivered as standard option
in all EntelliGuard L breakers A
& Isolators)
Power Rated 4NO & 4NC LAS4R 444209

Indication contacts B

Bell alarm contact LBAT1R 444210
1 Change over contact
C

Position indication contacts cassette
D
1 NO + 1 NC per position LCPS1R 444231
2 NO + 2 NC per position LCPS2R 444233
E

Locks with random key nr.
Ronis Profalux
Cat. No. Ref. No. Cat. No. Ref. No. X
Ronis 1104 B Lock (2) GRON 407985
Profalux B204Y Lock (2) GPRO 407986

Operation counter
On Front Fascia of breaker
Counter; number of Operations GMCNR 408033

(1) Supplied with spring charged contact
(2) See page A.9 for lock mechanisms

A.11
