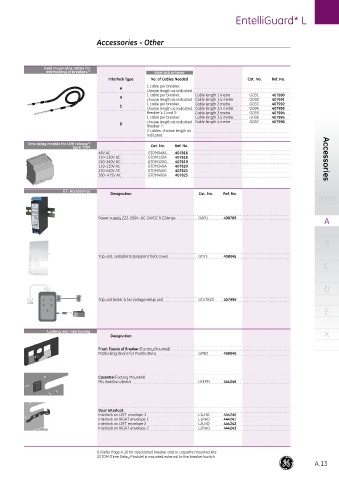

EntelliGuard* L

Accessories - Other

Field mountable cables for
interlocking of breakers (1) Interlock scheme
Interlock Type No. of Cables Needed Cat. No. Ref. No.
A 1 cable per breaker,
choose length as indicated
1 cable per breaker, Cable length 1 metre GCB1 407990
B
choose length as indicated Cable length 1,6 metre GCB2 407991
1 cable per breaker, Cable length 2 metre GCB3 407992
C choose length as indicated Cable length 2,5 metre GCB4 407993
Breaker’s 1 and 3: Cable length 3 metre GCB5 407994
1 cable per breaker, Cable length 3,5 metre GCB6 407995
choose length as indicated Cable length 4 metre GCB7 407996
D Breaker 2:
2 cables choose length as
indicated
Time delay module for UVR release (2)
type: TDM Cat. No. Ref. No.
48V AC GTDM048A 407816
110-130V DC GTDM120A 407818 Accessories
220-240V DC GTDM120D 407819
110-130V AC GTDM240A 407820
220-240V AC GTDM240D 407821
380- 415V AC GTDM400A 407825
GT- Accessories
Designation Cat. No. Ref. No.
Intro

Power supply 222-265V- AC-24VDC 0.22Amps GAPU 408789
A

B

Trip unit, sealable transparent front cover GTUS 408046
C

D

Trip unit tester & No Voltage setup unit GTUTK20 407999
E

Locking and Interlocking X
Designation

Front Fascia of Breaker (Factory Mounted)
Padlocking device for Pushbuttons GPBD 408040

Cassette (Factory Mounted)
Mis insertion device LREPM 444246

Door Interlock
Interlock on LEFT envelope 1 L1LHD 444240
Interlock on RIGHT envelope 1 L1RHD 444241
Interlock on LEFT envelope 2 L2LHD 444242
Interlock on RIGHT envelope 2 L2RHD 444243

(1) Refer Page A.10 for associated breaker and or cassette mounted kits
(2) TDM (Time Delay Module) is mounted external to the breaker/switch
