EntelliGuard* L

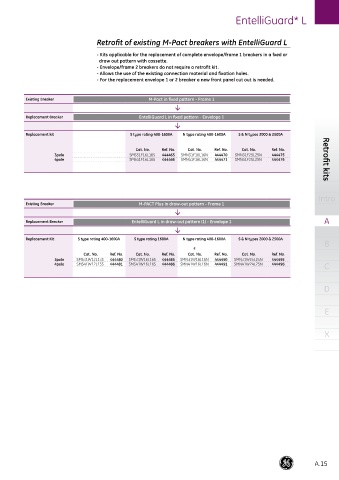

Retrofit of existing M-Pact breakers with EntelliGuard L

- Kits applicable for the replacement of complete envelope/frame 1 breakers in a fxed or
draw out pattern with cassette.
- Envelope/frame 2 breakers do not require a retrofit kit.
- Allows the use of the existing connection material and fixation holes.
- For the replacement envelope 1 or 2 breaker a new front panel cut out is needed.

Existing Breaker M-Pact in fixed pattern - Frame 1

Replacement Breaker EntelliGuard L in fixed pattern - Envelope 1

Replacement kit S type rating 400-1600A N type rating 400-1600A S & N types 2000 & 2500A

Cat. No. Ref. No. Cat. No. Ref. No. Cat. No. Ref. No.
3pole SMS31F16L16S 444465 SMN31F16L16N 444470 SMN31F25L25N 444475
4pole SMS41F16L16S 444466 SMN41F16L16N 444471 SMN41F25L25N 444476 Retrofit kits

Intro
Existing Breaker M-PACT Plus in draw-out pattern - Frame 1

Replacement Breaker EntelliGuard L in draw-out pattern (1) - Envelope 1 A

Replacement Kit S type rating 400-1600A S type rating 1600A N type rating 400-1600A S & N types 2000 & 2500A
B
z
Cat. No. Ref. No. Cat. No. Ref. No. Cat. No. Ref. No. Cat. No. Ref. No.
3pole SMS31W12L13S 444480 SMS31W16L16S 444485 SMN31W16L16N 444490 SMN31W25L25N 444495
C
4pole SMS41W12L13S 444481 SMS41W16L16S 444486 SMN41W16L16N 444491 SMN41W24L25N 444496
