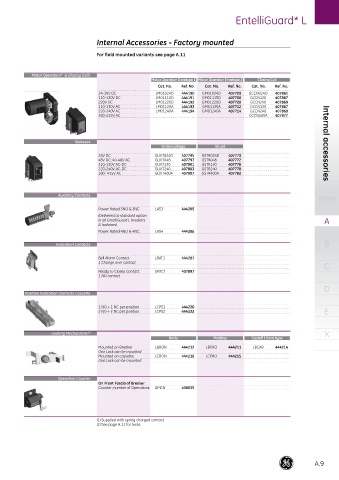

EntelliGuard* L

Internal Accessories - Factory mounted

For field mounted variants see page A.11

Motor Operators & Closing Coils
(1)
Motor Operator Envelope 1 Motor Operator Envelope 2 Closing Coil
Cat. No. Ref. No. Cat. No. Ref. No. Cat. No. Ref. No.
24-30V DC LM01024D 444190 GM01024D 407700 GCCN024D 407861
110-130V DC LM01110D 444191 GM01110D 407706 GCCN120 407867
220V DC LM01220D 444192 GM01220D 407720 GCCN240 407869
110-130V AC LM01120A 444193 GM01120A 407712 GCCN120 407867
220-240V AC LM01240A 444194 GM01240A 407714 GCCN240 407869
380-415V AC GCCN400A 407877

Releases Internal accessories
Undervoltage Shunt
24V DC GUVT024D 407795 GSTR024D 407770
48V DC; 40-48V AC GUVT048 407797 GSTR048 407772
110-130V AC-DC GUVT120 407801 GSTR120 407776
220-240V AC-DC GUVT240 407803 GSTR240 407778
380- 415V AC GUVT400A 407807 GSTR400A 407782

Auxiliary Contacts
Intro
Power Rated 3NO & 3NC LAS3 444205
(Delivered as standard option
in all EntelliGuard L breakers A
& Isolators)
Power Rated 4NO & 4NC LAS4 444206

Indication Contacts B

Bell Alarm Contact LBAT1 444207
1 Change over contact
C
Ready to Closes Contact GRTC1 407897
1 NO contact
D
Position Indication Contacts Cassette

1 NO + 1 NC per position LCPS1 444230
2 NO + 2 NC per position LCPS2 444232 E

Locking Mechanisms (2) X
Ronis Profalux Castell 19mm type
Mounted on Breaker LBRON 444212 LBPRO 444211 LBCA9 444214
One Lock can be mounted
Mounted on cassette LCRON 444216 LCPRO 444215
One Lock can be mounted

Operation Counter
On Front Fascia of Breaker
Counter; number of Operations GMCN 408035

(1) Supplied with spring charged contact
(2) See page A.11 for locks

A.9
