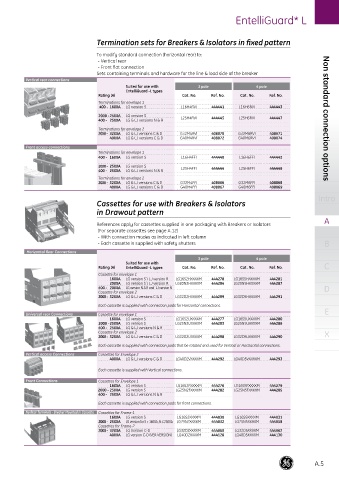

EntelliGuard* L

Termination sets for Breakers & Isolators in fixed pattern

To modify standard connection (horizontal rear) to:
- Vertical rear
- Front flat connection
Sets containing terminals and hardware for the line & load side of the breaker
Vertical rear connections
Suited for use with 3 pole 4 pole
EntelliGuard -L types
Rating (A) Cat. No. Ref. No. Cat. No. Ref. No.
Terminations for envelope 1
400 - 1600A LG version S L16H4RVI 444441 L16H6RVI 444443
2000 - 2500A LG version S L25H4RVI 444445 L25H6RVI 444447
400 - 2500A LG & LJ versions N & R Non standard connection options
Terminations for envelope 2
2000 - 3200A LG & LJ versions C & D G32M4RVI 408070 G32M6RVI 408071
4000A LG & LJ versions C & D G40M4RVI 408072 G40M6RVI 408074
Front access connections
Terminations for envelope 1
400 - 1600A LG version S L16H4FFI 444440 L16H6FFI 444442
2000 - 2500A LG version S L25H4FFI 444444 L25H6FFI 444446
400 - 2500A LG & LJ versions N & R
Terminations for envelope 2
2000 - 3200A LG & LJ versions C & D G32M4FFI 408066 G32M6FFI 408068
4000A LG & LJ versions C & D G40M4FFI 408067 G40M6FFI 408069
Intro
Cassettes for use with Breakers & Isolators
in Drawout pattern
A
References apply for cassettes supplied in one packaging with Breakers or Isolators
(For separate cassettes see page A.12)
- With connection modes as indicated in left column
- Each cassette is supplied with safety shutters B
Horizontal Rear Connections
3 pole 4 pole
Suited for use with
Rating (A) EntelliGuard -L types Cat. No. Ref. No. Cat. No. Ref. No. C
Cassette for envelope 1
1600A LG version S \ LJ version R LG16S2HXXXXM 444278 LG16S5HXXXXM 444281
2000A LG version S \ LJ version R LG20N2HXXXXM 444284 LG20N5HXXXXM 444287
400 - 2000A LG version N & R and LJ version N D
Cassette for envelope 2
2000 - 3200A LG & LJ versions C & D LG32D2HXXXXM 444289 LG32D5HXXXXM 444291
Each cassette is supplied with connection pads for Horizontal connections.
E
Universal rear Connections Cassette for envelope 1
1600A LG version S LG16S2UXXXXM 444277 LG16S5UXXXXM 444280
2000 -2500A LG version S LG25N2UXXXXM 444283 LG25N5UXXXXM 444286
400 - 2500A LG & LJ versions N & R
Cassette for envelope 2 X
2000 - 3200A LG & LJ versions C & D LG32D2UXXXXM 444288 LG32D5UXXXXM 444290
Each cassette is supplied with connection pads that be rotated and used for Vertical or Horizontal connections.
Vertical access Connections Cassettes for Envelope 2
4000A LG & LJ versions C & D LG40D2VXXXXM 444292 LG40D5VXXXXM 444293
Each cassette is supplied with Vertical connections.

Front Connections Cassettes for Envelope 1
1600A LG version S LG16S2FXXXXM 444276 LG16S5FXXXXM 444279
2000 - 2500A LG version S LG25N2FXXXXM 444282 LG25N5FXXXXM 444285
400 - 2500A LG & LJ versions N & R
Each cassette is supplied with connection pads for front connections.
No Rear Terminals - Breaker Mounted in Cassette Cassettes for Frame-1
1600A LG version S LG16S2XXXXM 444030 LG16S5XXXXM 444031
2000 - 2500A LG version for S > 1600A, N ≤ 2500A LG25N2XXXXM 444032 LG25N5XXXXM 444058
Cassettes for Frame-2
2000 - 3200A LG Version C-D LG32D2XXXXM 444060 LG32D5XXXXM 444062
4000A LG version C-D (VER VERSION) LG40D2XXXXM 444128 LG40D5XXXXM 444130

A.5
