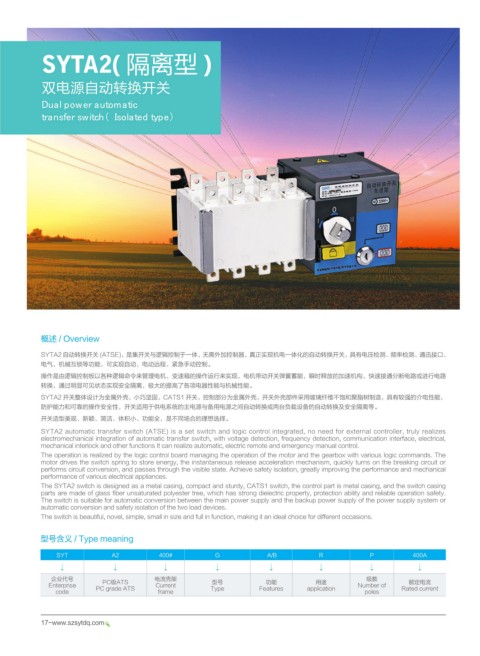

SYTA2( 隔离型 )

双电源自动转换开关

͑΂ͮ͹Ḥͽͼ΄ͲͿḤͮ΂΁ͼͺͮ΁ͶͰ
΁Ϳͮͻ΀ͳͲͿḤ΀΄Ͷ΁Ͱ͵č͖΀ͼ͹ͮ΁ͲͱḤ΁ΆͽͲĎ

概述 / Overview

SYTA2 自动转换开关 (ATSE)，是集开关与逻辑控制于一体，无需外加控制器，真正实现机电一体化的自动转换开关，具有电压检测、频率检测、通迅接口、
电气、机械互锁等功能，可实现自动、电动远程、紧急手动控制。
操作是由逻辑控制板以各种逻辑命令来管理电机、变速箱的操作运行来实现，电机带动开关弹簧蓄能，瞬时释放的加速机构，快速接通分断电路或进行电路
转换，通过明显可见状态实现安全隔离，极大的提高了各项电器性能与机械性能。
SYTA2 开关整体设计为金属外壳，小巧坚固，CATS1 开关，控制部分为金属外壳，开关外壳部件采用玻璃纤维不饱和聚脂树制造，具有较强的介电性能，
防护能力和可靠的操作安全性，开关适用于供电系统的主电源与备用电源之间自动转换或两台负载设备的自动转换及安全隔离等。
开关造型美观、新颖、简洁、体积小、功能全，是不同场合的理想选择。
SYTA2 automatic transfer switch (ATSE) is a set switch and logic control integrated, no need for external controller, truly realizes
electromechanical integration of automatic transfer switch, with voltage detection, frequency detection, communication interface, electrical,
mechanical interlock and other functions It can realize automatic, electric remote and emergency manual control.
The operation is realized by the logic control board managing the operation of the motor and the gearbox with various logic commands. The
motor drives the switch spring to store energy, the instantaneous release acceleration mechanism, quickly turns on the breaking circuit or
performs circuit conversion, and passes through the visible state. Achieve safety isolation, greatly improving the performance and mechanical
performance of various electrical appliances.
The SYTA2 switch is designed as a metal casing, compact and sturdy, CATS1 switch, the control part is metal casing, and the switch casing
parts are made of glass fiber unsaturated polyester tree, which has strong dielectric property, protection ability and reliable operation safety.
The switch is suitable for automatic conversion between the main power supply and the backup power supply of the power supply system or
automatic conversion and safety isolation of the two load devices.
The switch is beautiful, novel, simple, small in size and full in function, making it an ideal choice for different occasions.

型号含义 / Type meaning

SYT A2 400# G A/B R P 400A
↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
企业代号 电流壳架 级数
功能
型号
额定电流
用途
PC级ATS
Enterprise PC grade ATS Current Type Features application Number of Rated current
code frame poles
