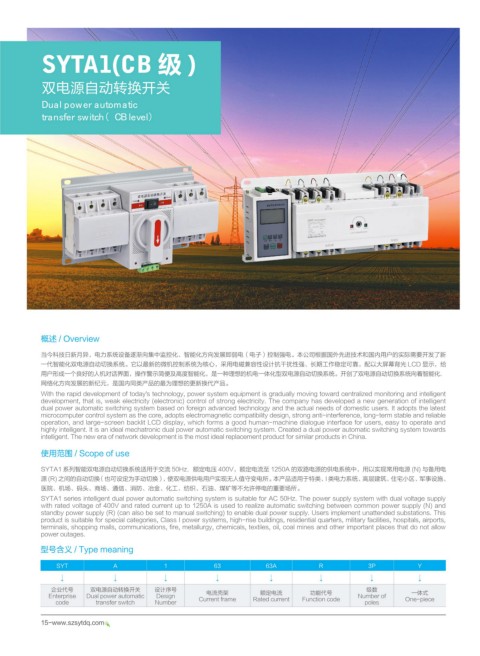

SYTA1(CB 级 )

双电源自动转换开关

͑΂ͮ͹Ḥͽͼ΄ͲͿḤͮ΂΁ͼͺͮ΁ͶͰ
΁Ϳͮͻ΀ͳͲͿḤ΀΄Ͷ΁Ͱ͵č͐͏Ḥ͹Ͳ΃Ͳ͹Ď

概述 / Overview

当今科技日新月异，电力系统设备逐渐向集中监控化、智能化方向发展即弱电（电子）控制强电。本公司根据国外先进技术和国内用户的实际需要开发了新
一代智能化双电源自动切换系统。它以最新的微机控制系统为核心，采用电磁兼容性设计抗干扰性强、长期工作稳定可靠，配以大屏幕背光 LCD 显示，给
用户形成一个良好的人机对话界面，操作警示简便及高度智能化，是一种理想的机电一体化型双电源自动切换系统。开创了双电源自动切换系统向着智能化．
网络化方向发展的新纪元，是国内同类产品的最为理想的更新换代产品。
With the rapid development of today's technology, power system equipment is gradually moving toward centralized monitoring and intelligent
development, that is, weak electricity (electronic) control of strong electricity. The company has developed a new generation of intelligent
dual power automatic switching system based on foreign advanced technology and the actual needs of domestic users. It adopts the latest
microcomputer control system as the core, adopts electromagnetic compatibility design, strong anti-interference, long-term stable and reliable
operation, and large-screen backlit LCD display, which forms a good human-machine dialogue interface for users, easy to operate and
highly intelligent. It is an ideal mechatronic dual power automatic switching system. Created a dual power automatic switching system towards
intelligent. The new era of network development is the most ideal replacement product for similar products in China.

使用范围 / Scope of use
SYTA1 系列智能双电源自动切换系统适用于交流 50Hz．额定电压 400V，额定电流至 1250A 的双路电源的供电系统中，用以实现常用电源 (N) 与备用电
源 (R) 之间的自动切换（也可设定为手动切换），使双电源供电用户实现无人值守变电所。本产品适用于特类、I 类电力系统、高层建筑、住宅小区、军事设施、
医院、机场、码头、商场、通信、消防、冶金、化工、纺织、石油、煤矿等不允许停电的重要场所。
SYTA1 series intelligent dual power automatic switching system is suitable for AC 50Hz. The power supply system with dual voltage supply
with rated voltage of 400V and rated current up to 1250A is used to realize automatic switching between common power supply (N) and
standby power supply (R) (can also be set to manual switching) to enable dual power supply. Users implement unattended substations. This
product is suitable for special categories, Class I power systems, high-rise buildings, residential quarters, military facilities, hospitals, airports,
terminals, shopping malls, communications, fire, metallurgy, chemicals, textiles, oil, coal mines and other important places that do not allow
power outages.
型号含义 / Type meaning
SYT A 1 63 63A R 3P Y
↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
企业代号 双电源自动转换开关 设计序号 级数
额定电流
功能代号
一体式
电流壳架
Enterprise Dual power automatic Design Current frame Rated current Function code Number of One-piece
code transfer switch Number poles
