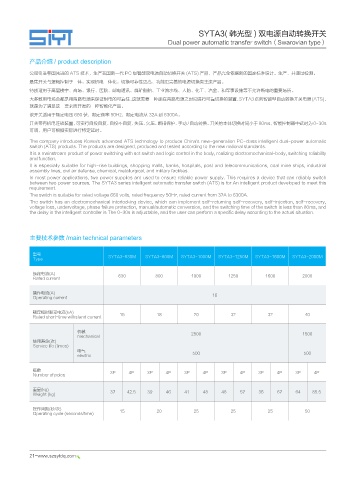

SYTA3( 韩光型 ) 双电源自动转换开关
Dual power automatic transfer switch（Swarovian type）

产品介绍 / product description

公司引进韩国先进的 ATS 技术，生产我国新—代 PC 级智能双电源自动切换开关 (ATS) 产品，产品完全依据新的国家标准设计、生产、并通过检测。
是集开关与逻辑控制于—体，实现机电—体化，切换可靠性更高、功能更完善的电源切换类主流产品。
特别适用于高层楼宇、商场、银行、医院、邮电通讯、煤矿船舶、工业流水线、人防、化工、冶金、和军事设施等不允许断电的重要场所。
大多数用电场合都是用两路电源来保证供电的可靠住，这就需要—种能在两路电源之时间进行可靠切换的装置，SYTA3系列智能型自动转换开关电器(ATS)，
就是为了满足这—要求而开发的—种智能化产品。
该开关适用于额定电压 660 伏，额定频率 50Hz，额定电流从 32A 到 6300A。
开关带有机电连锁装置，可实行自投自复、自投不自复、失压、欠压、断相保护、手动 / 自动转换、开关的本体切换时间小于 80ms，智能控制器中延时为 0-30s
可调，用户可根据实际进行特定延时。
The company introduces Korea's advanced ATS technology to produce China's new-generation PC-class intelligent dual-power automatic
switch (ATS) products. The products are designed, produced and tested according to the new national standards.
It is a mainstream product of power switching with set switch and logic control in the body, realizing electromechanical-body, switching reliability
and function.
It is especially suitable for high-rise buildings, shopping malls, banks, hospitals, post and telecommunications, coal mine ships, industrial
assembly lines, civil air defense, chemical, metallurgical, and military facilities.
In most power applications, two power supplies are used to ensure reliable power supply. This requires a device that can reliably switch
between two power sources. The SYTA3 series intelligent automatic transfer switch (ATS) is for An intelligent product developed to meet this
requirement.
The switch is suitable for rated voltage 660 volts, rated frequency 50Hz, rated current from 32A to 6300A.
The switch has an electromechanical interlocking device, which can implement self-returning self-recovery, self-injection, self-recovery,
voltage loss, undervoltage, phase failure protection, manual/automatic conversion, and the switching time of the switch is less than 80ms, and
the delay in the intelligent controller is The 0-30s is adjustable, and the user can perform a specific delay according to the actual situation.

主要技术参数 /main technical parameters

型号 SYTA3-630M SYTA3-800M SYTA3-1000M SYTA3-1250M SYTA3-1600M SYTA3-2000M
Type

额定电流(A) 630 800 1000 1250 1600 2000
Rated current

操作电流(A) 16
Operating current

额定短时耐受电流(kA) 15 18 20 32 32 40
Rated short-time withstand current

机械 2500 1500
mechanical
使用寿命(次)
Service life (times)
电气 500 500
electric

极数 3P 4P 3P 4P 3P 4P 3P 4P 3P 4P 3P 4P
Number of poles

重量(kg) 37 42.5 39 46 41 48 48 57 36 67 64 85.5
Weight (kg)

操作周期(秒/次) 15 20 25 25 25 50
Operating cycle (seconds/time)
