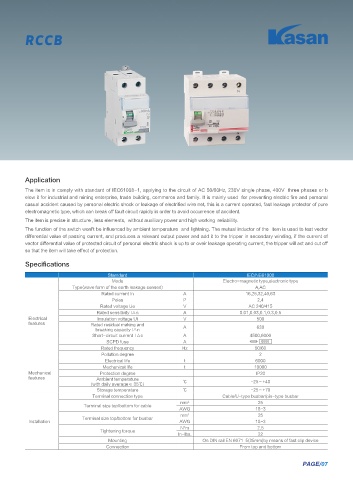

RCCB




























          Application

          The item is in comply with standard of IEC61008-1, applying to the circuit of AC 50/60Hz, 230V single phase, 400V  three phases or b
          elow it for industrial and mining enterprise, trade building, commerce and family. It is mainly used  for preventing electric fire and personal
          casual accident caused by personal electric shock or leakage of electrified wire net, this is a current operated, fast leakage protector of pure
          electromagnetic type, which can break off fault circuit rapidly in order to avoid occurrence of accident.
          The item is precise in structure , less elements,  without auxiliiary power and high working  reliabiility.
          The function of the switch wonl't be influenced by ambient temperature  and lightning. The mutual inductor of the  item is used to test vector
          differential value of passing current, and produces a relevant output power and add it to the tripper in secondary winding, if the current of
          vector differential value of protected circuit of personal electric shock is up to or oveir leakage operating current, the tripper will act and cut off
          so that the item will take effect of protection.

          Specifications
                                     Stamdard                                       IEC/NE61008
                                       Mode                                 Electro-magnetic type,electronic type
                         Type(wave form of the earth leakage sensed)                   A,AC
                                   Rated current In            A                    16,25,32,40,63
                                       Poles                   P                        2,4
                                   Rated voltage Ue            V                     AC 240/415
                                  Rated sensitivity I△n        A                  0.01,0.03,0.1,0.3,0.5
           Electrical             Insulation voltage Ui        V                        500
           features             Rated residual making and
                                 breaking capacity I△n         A                        630
                                Short-circuit current  I△c     A                     4500,6000
                                     SCPD fuse                 A
                                   Rated frequency            Hz                       50/60
                                   Pollution degree                                     2
                                    Electrical life            t                       6000
                                    Mechanicat life            t                       10000
           Mechanical              Protection degree                                   IP20
           features               Ambient temperature
                                (with daily average≤ 35℃)      ℃                      -25~+40
                                  Storage temperature          ℃                      -25~+70
                                Terminal connection type                    Cable/U-type busbar/pin-type busbar
                                                              mm 2                      25
                             Terminal size top/bottom for cable
                                                              AWG                      18-3
                                                              mm 2                      25
                             Terminal size top/bottom for busbar
           Installation                                       AWG                      18-3
                                                              N*m                       2.5
                                   Tightening torque
                                                             In-Ibs.                    22
                                      Mounting                       On DIN rail EN 6071  5(35mm)by means of fast clip device
                                     Connection                                   From top and bottom
