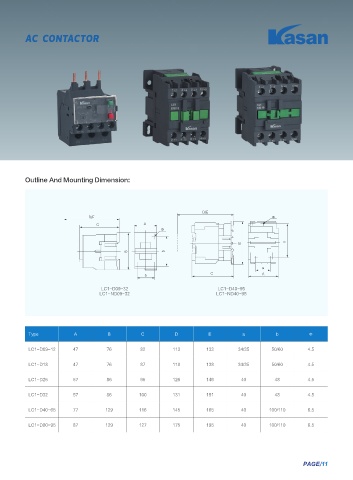

AC CONTACTOR
Outline And Mounting Dimension:
% &
% &
$ "
# C
# C
B
$ "
B
LC1-D09~32 LC1-D40~95
LC1-ND09~32 LC1-ND40~95
Type A B C D E a b Φ
LC1-D09-12 47 76 82 113 133 34/35 50/60 4.5
LC1-D18 47 76 87 118 138 34/35 50/60 4.5
LC1-D25 57 86 95 126 146 40 48 4.5
LC1-D32 57 86 100 131 151 40 48 4.5
LC1-D40-65 77 129 116 145 165 40 100/110 6.5
LC1-D80-95 87 129 127 175 195 40 100/110 6.5
