P. 10

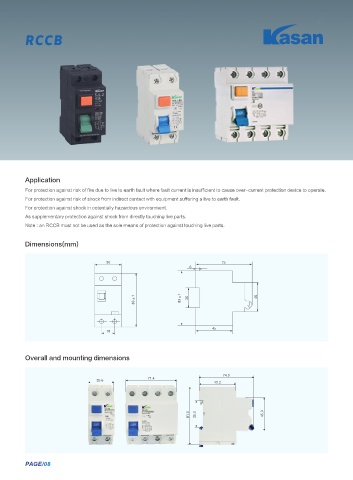

RCCB
Application
For protection against risk of fire due to live to earth fault where fault current is insufficient to cause over-current protection device to operate.
For protection against risk of shock from indirect contact with equipment suffering a live to earth fault.
For protection against shock in potentially hazardous environment.
As supplementary protection against shock from directly touching live parts.
Note : an RCCB must not be used as the sole means of protection against touching Iive parts.
Dimensions(mm)
d d
Overall and mounting dimensions
PAGE/08
