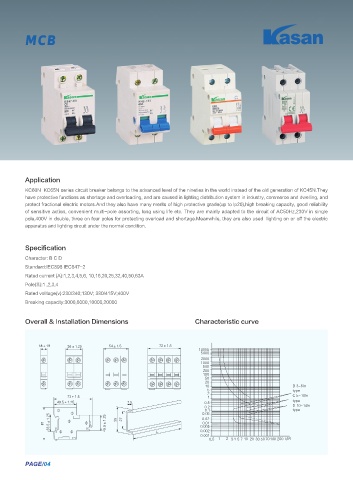

MCB

Application

KC60N KC65N series circuit breaker belongs to the advanced level of the nineties in the world instead of the old generation of KC45N.They
have protective functions as shortage and overloading, and are caused in lighting distribution system in industry, commerce and dwelling, and
protect fractional electric motors.And they also have many merits of high protective grade(up to lp20),high breaking capacity, good reliability
of sensitive action, convenient multi-pole assorting, long using life etc. They are mainly adapted to the circuit of AC50Hz,230V in single
pole,400V in double, three on four poles for protecting overload and shortage.Meanwhile, they are also used lighting on or off the electric
apparatus and lighting circuit under the normal condition.

Specification
Character: B C D
Standard:IEC898 IEC847-2
Rated current (A):1,2,3,4,5,6, 10,16,20,25,32,40,50,63A
Pole(S):1 ,2,3,4
Rated volltage(v):230/340;130V; 380/415V;400V
Breaking capacity:3000,6000,10000,20000

Overall & Installation Dimensions Characteristic curve

d d d d

# *O
UZQF

d $ *O
d UZQF
% *O
UZQF

d

d

-

* *3
