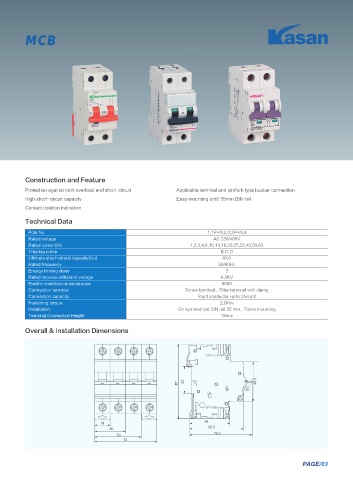

Page 5 - YUEQING KASHENG ELECTRIC CO.,LTD
P. 5
MCB
Construction and Feature
Protection against both overload and short circuit Applicable terminal and pin/fork type busbar connection
High short-circuit capacity Easy mounting ont0 35mm DIN rail
Contact position indication
Technical Data
Pole No 1,1P+N,2,3,3P+N,4
Rated voltage AC 230/400V
Rated current(A) 1,2,3,4,6,10,13,16,20,25,32,40,50,63
Tripping curve B.C.D
Ultimate short-circuit capacity(lcu) 6KA
Rated frequency 50/60Hz
Energy limiting class 3
Rated impulse withstand voltage 6.2KV
Electro-mechanical endurance 6000
Connection terminal Screw terminal、Pillar terminal with clamp
Connection capacity Rigid conductor up to 25mm2
Fastening torque 2.0Nm
Installation On symmetrical DIN rail 35 mm、Panel mounting
Terminal Connection Height 19mm
Overall & Installation Dimensions
