P. 4

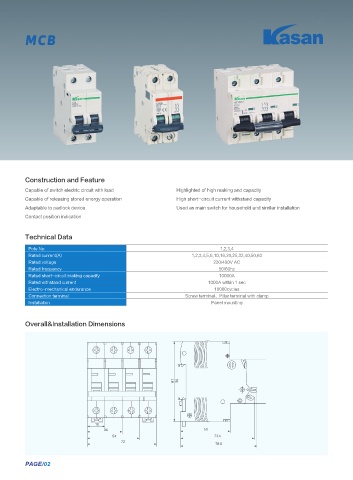

MCB
Construction and Feature
Capable of switch electric circuit with load Highlighted of high making and capacity
Capable of releasing stored energy operation High short-circuit current withstand capacity
Adaptable to padlock device Used as main switch for household and similar installation
Contact position indication
Technical Data
Pole No 1,2,3,4
Rated current(A) 1,2,3,4,5,6,10,16,20,25,32,40,50,63
Rated voltage 230/400V AC
Rated frequency 50/60hz
Rated short-circuit making capacity 10000A
Rated withstand current 1000A within 1 sec
Electro-mechanical endurance 10000cycles
Connection terminal Screw terminal、Pillar terminal with clamp
Installation Panel mounting
Overall&Installation Dimensions
PAGE/02
