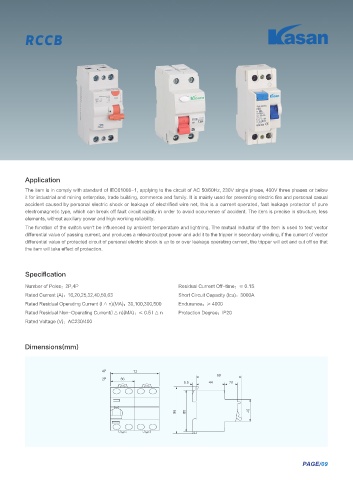

RCCB

Application

The item is in comply with standard of IEC61008-1, applying to the circuit of AC 50/60Hz, 230V single phase, 400V three phases or below
it for industrial and mining enterprise, trade building, commerce and family. It is mainly used for preventing electric fire and personal casual
accident caused by personal electric shock or leakage of electrified wire net, this is a current operated, fast leakage protector of pure
electromagnetic type, which can break off fault circuit rapidly in order to avoid occurrence of accident. The item is precise in structure, less
elements, without auxiliary power and high working reliability.
The function of the switch won't be influenced by ambient temperature and lightning. The mutual inductor of the item is used to test vector
differential value of passing current, and produces a relevantoutput power and add it to the tripper in secondary winding, if the current of vector
differential value of protected circuit of personal electric shock is up to or over leakage operating current, the tripper will act and cut off so that
the item will take effect of protection.

Speciflcation

Number of Poles：2P,4P Residual Current Off-time：≤ 0.1S
Rated Current (A)：16,20,25,32,40,50,63 Short Circuit Capacity (Icu)：3000A
Rated Residual Operating Current (l △ n)(MA)：30,100,300,500 Endurance：≥ 4000
Rated Residual Non-Operating Current(l △ n)(MA)：≤ 0.5 I △ n Protection Degree：IP20
Rated Voltage (V)：AC230/400

Dimensions(mm)

1

1
