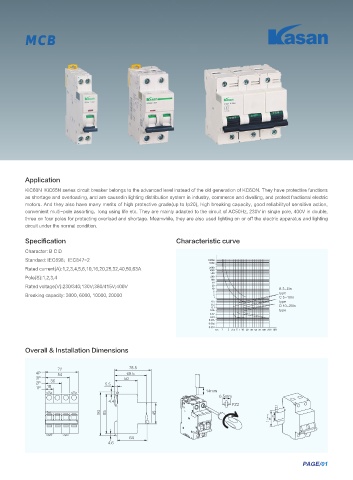

MCB

Application

KiC60N KiC65N series circuit breaker belongs to the advanced level instead of the old generation of KC6ON. They have protective functions
as shortage and overloading, and are causedin lighting distribution system in industry, commerce and dwelling, and protect fractional electric
motors. And they also have many merits of high protective grade(up to Ip20), high breaking capacity, good reliabilityof sensitive action,
convenient multi-pole assorting，long using life etc. They are mainly adapted to the circuit of AC50Hz, 230V in single pole, 400V in double,
three on four poles for protecting overload and shortage. Meanwhile, they are also used lighting on or off the electric apparatus and lighting
circuit under the normal condition.

Specification Characteristic curve
Character: B C D
Standard: IEC898；IEC847-2

Rated current(A):1,2,3,4,5,6,10,16,20,25,32,40,50,63A

Pole(S):1,2,3,4

Rated voltage(V):230/340;130V;380/415V;400V
# *O
UZQF
Breaking capacity: 3000, 6000, 10000, 20000 $ *O
UZQF
% *O

UZQF

* *3
Overall & Installation Dimensions

1
1
1
1
NN
NN

1;

%*/ NN
