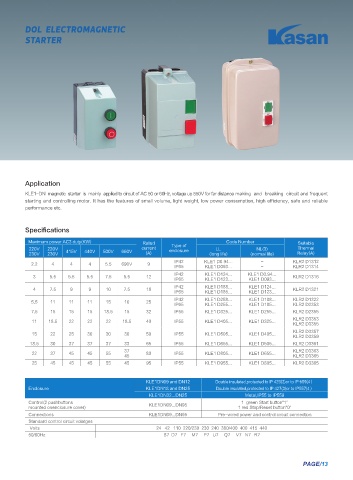

DOL ELECTROMAGNETIC
STARTER

Application
KLE1-DN magnetic starter is mainly applied to circuit of AC 50 or 60Hz, voltage up 550V for far distance making and breaking circuit and frequent
starting and controlling motor. It has the features of small volume, light weight, low power consumption, high efficiency, safe and reliable
performance etc.

Specifications
Maximum power AC3 duty(KW) Rated Code Number Suitable
Type of
220V 220V current enclosure LL NL(3) Thermal
230V 230V 415V 440V 500V 660V (A) (long life) (normal life) Relay(A)
IP42 KLE1 D0.94... - KLR2 D1312
2.2 4 4 4 5.5 690V 9
IP65 KLE1 D093... - KLR2 D1314
IP42 KLE1 D124... KLE1 D0.94...
3 5.5 5.5 5.5 7.5 5.5 12 KLR2 D1316
IP65 KLE1 D123... KLE1 D093...
IP42 KLE1 D188... KLE1 D124...
4 7.5 9 9 10 7.5 18 KLR2 D1321
IP65 KLE1 D185... KLE1 D123...
IP42 KLE1 D258... KLE1 D188... KLR2 D1322
5.5 11 11 11 15 10 25
IP65 KLE1 D255... KLE1 D185... KLR2 D2353
7.5 15 15 15 18.5 15 32 IP55 KLE1 D325... KLE1 D255... KLR2 D2355
KLR2 D3353
11 18.5 22 22 22 18.5 40 IP55 KLE1 D405... KLE1 D325...
KLR2 D3355
KLR2 D3357
15 22 25 30 30 30 50 IP55 KLE1 D505... KLE1 D405...
KLR2 D3359
18.5 30 37 37 37 33 65 IP55 KLE1 D655... KLE1 D505... KLR2 D3361
37 KLR2 D3363
22 37 45 45 55 80 IP55 KLE1 D805... KLE1 D655...
45 KLR2 D3365
25 45 45 45 55 45 95 IP55 KLE1 D955... KLE1 D805... KLR2 D3365

KLE1DN09 and DN12 Double insulated,protected to IP 429(3)or to IP 659(4）
Enclosure KLE1DN18 and DN25 Double insulated,protected to IP 427(3)or to IP557(4）
KLE1DN32...DN25 Metal,IP55 to IP559
Control(2 pushbuttons KLE1DN09...DN95 1 green Start button"1"
mounted onenclosure cover) 1 red Stop/Reset button"0"
Connections KLE1DN09...DN95 Pre-wired power and control circuit connection
Standard control circuit volatges
Volts 24 42 110 220/230 230 240 380/400 400 415 440
50/60Hz B7 D7 F7 M7 P7 U7 Q7 V7 N7 R7
