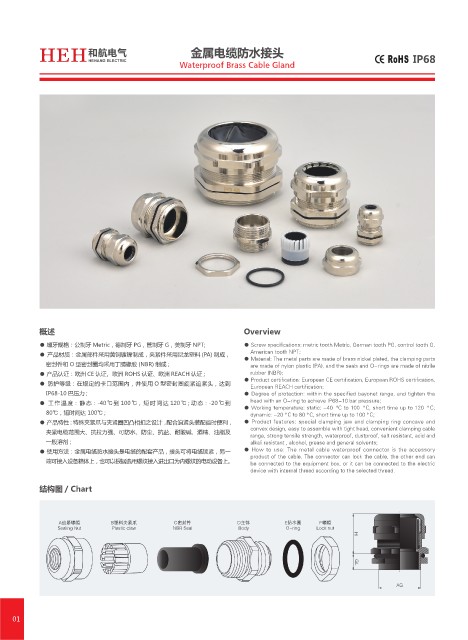

HEH 和航电气 金属电缆防水接头
HEHANG ELECTRIC
Waterproof Brass Cable Gland

概述 Overview

● 螺牙规格：公制牙 Metric，德制牙 PG，管制牙 G，美制牙 NPT; ● Screw specifications: metric tooth Metric, German tooth PG, control tooth G,
● 产品材质：金属部件采用黄铜镀镍制成，夹紧件采用尼龙塑料 (PA) 制成， American tooth NPT;
● Material: The metal parts are made of brass nickel plated, the clamping parts
密封件和 O 型密封圈均采用丁腈橡胶 (NBR) 制成 ; are made of nylon plastic (PA), and the seals and O-rings are made of nitrile
● 产品认证：欧洲 CE 认证、欧洲 ROHS 认证、欧洲 REACH 认证 ; rubber (NBR);
● Product certification: European CE certification, European ROHS certification,
● 防护等级：在规定的卡口范围内，并使用 O 型密封圈旋紧迫紧头，达到
European REACH certification;
IP68-10 巴压力 ; ● Degree of protection: within the specified bayonet range, and tighten the
● 工 作 温 度： 静 态：-40 ℃ 到 100 ℃，短时间达 120 ℃ ; 动 态：-20 ℃ 到 head with an O-ring to achieve IP68-10 bar pressure;
● Working temperature: static: -40 ° C to 100 ° C, short time up to 120 °C;
80℃，短时间达 100℃ ; dynamic: -20 °C to 80 °C, short time up to 100 °C;
● 产品特性：特殊夹紧爪与夹紧圈凹凸相扣之设计，配合迫紧头装配省时便利， ● Product features: special clamping jaw and clamping ring concave and
夹紧电缆范围大、抗拉力强、可防水、防尘、抗盐、耐酸碱、酒精、油脂及 convex design, easy to assemble with tight head, convenient clamping cable
range, strong tensile strength, waterproof, dustproof, salt resistant, acid and
一般溶剂 ; alkali resistant , alcohol, grease and general solvents;
● 使用方法：金属电缆防水接头是电缆的配套产品，接头可将电缆锁紧，另一 ● How to use: The metal cable waterproof connector is the accessory
product of the cable. The connector can lock the cable, the other end can
端可接入设备箱体上，也可以根据选用螺纹接入进出口为内螺纹的电动设备上。 be connected to the equipment box, or it can be connected to the electric
device with internal thread according to the selected thread.

结构图 / Chart

"ᤔጊᛂࣤ #܇஧݂ጊྒ $ࠚ࠯͇ %˞ͳ &᫸පړ 'ᛂࣤ
4FBMJOH /VU 1MBTUJD DMBX /#3 4FBM #PEZ 0 SJOH -PDL OVU
)

(-

"(

01
