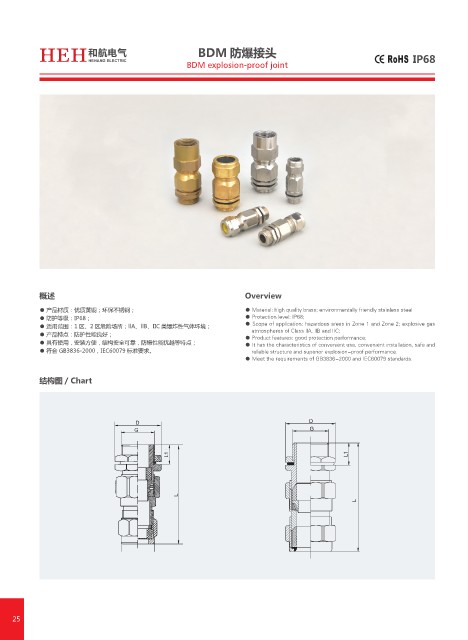

HEH          和航电气                        BDM 防爆接头
                        HEHANG ELECTRIC
                                                 BDM explosion-proof joint



































           概述                                                   Overview
           ● 产品材质:优质黄铜;环保不锈钢;                                   ● Material: high quality brass; environmentally friendly stainless steel
           ● 防护等级:IP68;                                         ● Protection level: IP68;
           ● 适用范围:1 区、2 区危险场所;llA、llB、IIC 类爆炸性气体环境;             ● Scope of application: hazardous areas in Zone 1 and Zone 2; explosive gas
                                                                  atmospheres of Class llA, llB and IIC;
           ● 产品特点:防护性能良好;                                       ● Product features: good protection performance;
           ● 具有使用,安装方便,结构安全可靠,防爆性能优越等特点;                        ● It has the characteristics of convenient use, convenient installation, safe and
           ● 符合 GB3836-2000,IEC60079 标准要求。                        reliable structure and superior explosion-proof performance.
                                                                ● Meet the requirements of GB3836-2000 and IEC60079 standards.

           结构图 / Chart






                                    D                                            D
                                    G                                            G


                                            L1                                             L1





                                               L
                                                                                             L
















    25
