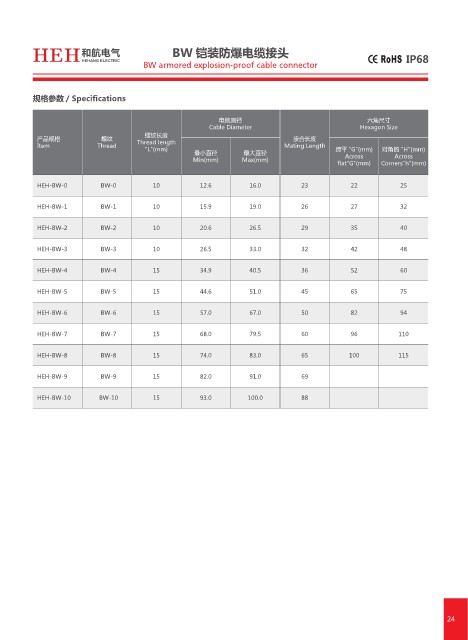

HEH 和航电气 BW 铠装防爆电缆接头
HEHANG ELECTRIC
BW armored explosion-proof cable connector
规格参数 / Specifications
电缆直径 六角尺寸
Cable Diameter Hexagon Size
螺纹长度
产品规格 螺纹 Thread length 接合长度
Item Thread "L"(mm) Mating Length 跨平 "G"(mm) 对角的 "H"(mm)
最小直径 最大直径 Across Across
Min(mm) Max(mm) flat"G"(mm) Corners"h"(mm)
HEH-BW-0 BW-0 10 12.6 16.0 23 22 25
HEH-BW-1 BW-1 10 15.9 19.0 26 27 32
HEH-BW-2 BW-2 10 20.6 26.5 29 35 40
HEH-BW-3 BW-3 10 26.5 33.0 32 42 48
HEH-BW-4 BW-4 15 34.9 40.5 36 52 60
HEH-BW-5 BW-5 15 44.6 51.0 45 65 75
HEH-BW-6 BW-6 15 57.0 67.0 50 82 94
HEH-BW-7 BW-7 15 68.0 79.5 60 96 110
HEH-BW-8 BW-8 15 74.0 83.0 65 100 115
HEH-BW-9 BW-9 15 82.0 91.0 69
HEH-BW-10 BW-10 15 93.0 100.0 88
