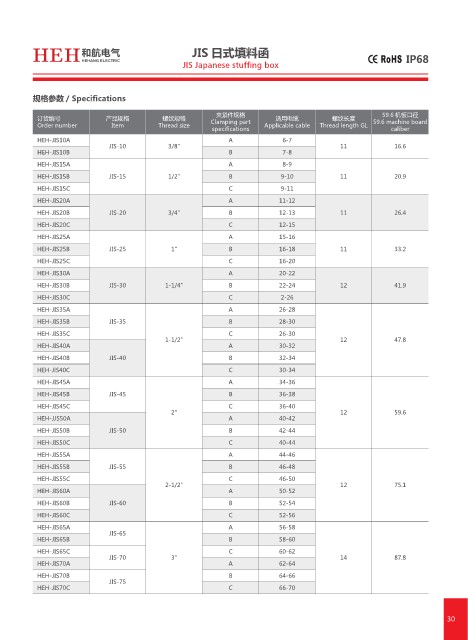

HEH 和航电气 JIS 日式填料函
HEHANG ELECTRIC
JIS Japanese stuffing box
规格参数 / Specifications
夹紧件规格 59.6 机板口径
订货编号 产品规格 螺纹规格 Clamping part 适用电缆 螺纹长度 59.6 machine board
Order number Item Thread size Applicable cable Thread length GL
specifications caliber
HEH-JIS10A A 6-7
JIS-10 3/8" 11 16.6
HEH-JIS10B B 7-8
HEH-JIS15A A 8-9
HEH-JIS15B JIS-15 1/2" B 9-10 11 20.9
HEH-JIS15C C 9-11
HEH-JIS20A A 11-12
HEH-JIS20B JIS-20 3/4" B 12-13 11 26.4
HEH-JIS20C C 12-15
HEH-JIS25A A 15-16
HEH-JIS25B JIS-25 1" B 16-18 11 33.2
HEH-JIS25C C 16-20
HEH-JIS30A A 20-22
HEH-JIS30B JIS-30 1-1/4" B 22-24 12 41.9
HEH-JIS30C C 2-26
HEH-JIS35A A 26-28
HEH-JIS35B JIS-35 B 28-30
HEH-JIS35C C 26-30
1-1/2" 12 47.8
HEH-JIS40A A 30-32
HEH-JIS40B JIS-40 B 32-34
HEH-JlS40C C 30-34
HEH-JIS45A A 34-36
HEH-JIS45B JIS-45 B 36-38
HEH-JIS45C C 36-40
2" 12 59.6
HEH-JJS50A A 40-42
HEH-JIS50B JIS-50 B 42-44
HEH-JIS50C C 40-44
HEH-JIS55A A 44-46
HEH-JIS55B JIS-55 B 46-48
HEH-JIS55C C 46-50
2-1/2" 12 75.1
HEH-JIS60A A 50-52
HEH-JIS60B JIS-60 B 52-54
HEH-JIS60C C 52-56
HEH-JIS65A A 56-58
JIS-65
HEH-JIS65B B 58-60
HEH-JIS65C C 60-62
JIS-70 3" 14 87.8
HEH-JIS70A A 62-64
HEH-JIS70B B 64-66
JIS-75
HEH-JIS70C C 66-70
