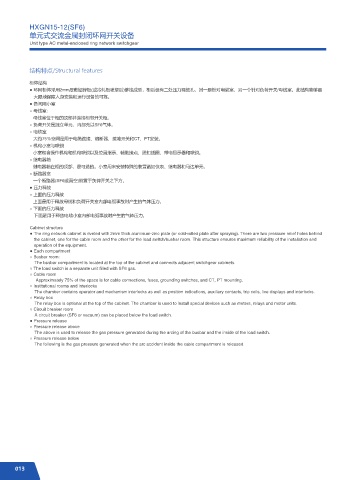

HXGN15-12(SF6)
           单元式交流金属封闭环网开关设备
           Unit type AC metal-enclosed ring network switchgear



           结构特点/Structural features

           柜体结构
           ● 环网柜体采用2mm厚敷铝锌板(或冷轧板喷塑后)铆接成型,柜后设有二处压力释放孔,其一是针对电缆室,另一个针对负荷开关/母线室。此结构能够最
             大限地保障人身安装和运行设备的可靠。
           ● 各间隔小室
           ○ 母线室:
              母线室位于柜的顶部并连接相邻开关柜。
           ○ 负荷开关是独立单元,内部充以SF6气体。
           ○ 电缆室
              大约75%空间是用于电缆连接、熔断器、接地开关和CT、PT安装。
           ○ 机构小室与联锁
              小室包含操作机构和机构联锁以及位置指示、辅助接点、脱扣线圈、带电显示器和联锁。
           ○ 继电器箱
              继电器箱在柜的顶部,是可选的。小室用来安装特殊的装置诸如仪表、继电器和马达单元。
           ○ 断路器室
              一个断路器(SF6或真空)能置于负荷开关之下方。
           ● 压力释放
           ○ 上面的压力释放
              上面是用于释放母线和负荷开关室内部电弧事故时产生的气体压力。
           ○ 下面的压力释放
              下面是用于释放电缆小室内部电弧事故时产生的气体压力。
           Cabinet structure
           ● The ring network cabinet is riveted with 2mm thick aluminum-zinc plate (or cold-rolled plate after spraying). There are two pressure relief holes behind
             the cabinet, one for the cable room and the other for the load switch/busbar room. This structure ensures maximum reliability of the installation and
             operation of the equipment.
           ● Each compartment
           ○ Busbar room:
               The busbar compartment is located at the top of the cabinet and connects adjacent switchgear cabinets.
           ○ The load switch is a separate unit filled with SF6 gas.
           ○ Cable room
                Approximately 75% of the space is for cable connections, fuses, grounding switches, and CT, PT mounting.
           ○ Institutional rooms and interlocks
               The chamber contains operator and mechanism interlocks as well as position indications, auxiliary contacts, trip coils, live displays and interlocks.
           ○ Relay box
               The relay box is optional at the top of the cabinet. The chamber is used to install special devices such as meters, relays and motor units.
           ○ Circuit breaker room
               A circuit breaker (SF6 or vacuum) can be placed below the load switch.
           ● Pressure release
           ○ Pressure release above
               The above is used to release the gas pressure generated during the arcing of the busbar and the inside of the load switch.
           ○ Pressure release below
               The following is the gas pressure generated when the arc accident inside the cable compartment is released.
