HXGN15-12(VS1)型单元式交流金属封闭环网开关设备 (以下简称环网柜) 是我们在引进国外先进技术并按照国内农电及城网改
造之要求而自行设计、研制成功的新一代高压电器产品。各项技术性能指标全IEC62271-200:2003和GB3906标准。
环网柜的主开关、操作机构及元器件采用ABB公司原装件或采用进口部件国内组装生产的SFL-12/24型开关设备，也可根据用户
需要配装ABB公司原装HAD/US型VS1。 断路器或VD4-S型真空断路器。 其操作方式分为手动、电动两种。
柜体经数控机床加工后铆接而成，防护等级达到IP3X，并有可靠的机械联锁和防误操作功能。本产品具有体积小、重量轻、外
型美观、操作简便、长寿命、高参数、无污染、少维护等极具显著的特点。
HXGN15-12(VS1)型单元式交流金属封闭环网开关设备， 适用于交50Hz、12kV的电力网络中，作为电能的接受和分配之用。
柜内主开关为VS1开关。
HXGN15-12 (VS1) type unit AC metal-enclosed ring network switchgear (hereinafter referred to as ring network cabinet) is
a new generation that we designed and developed successfully by introducing foreign advanced technology and complying
with the requirements of domestic agricultural power and urban network transformation. High-voltage electrical products. The
technical performance indicators are all IEC62271-200:2003 and GB3906 standards.
The main switch, operating mechanism and components of the ring network cabinet adopt the original ABB original parts or the
SFL-12/24 type switchgear which is assembled and produced domestically with imported components. It can also be equipped
with ABB original HAD/US type VS1 according to user needs. Circuit breaker or VD4-S vacuum circuit breaker. Its operation
mode is divided into manual and electric.
The cabinet is riveted by CNC machine tool, the protection level is IP3X, and it has reliable mechanical interlock and anti-
misoperation function. This product has the characteristics of small size, light weight, beautiful appearance, easy operation, long
life, high parameters, no pollution, and less maintenance.
HXGN15-12 (VS1) type unit AC metal-enclosed ring network switchgear, suitable for AC 50Hz, 12kV power network, as the
acceptance and distribution of electric energy. The main switch in the cabinet is the VS1 switch.

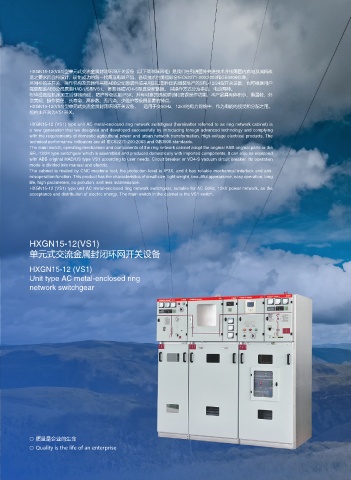

HXGN15-12(VS1)
单元式交流金属封闭环网开关设备

HXGN15-12 (VS1)
Unit type AC metal-enclosed ring
network switchgear

质量是企业的生命
Quality is the life of an enterprise
