HXGN15-12(SF6) 型单元式交流金属封闭环网开关设备 (以下简称环网柜) 是我们在引进国外先进技术并按照国内农电及城网改
造之要求而自行设计、研制成功的新一代高压电器产品。各项技术性能指标全IEC62271-200:2003和GB3906标准。
环网柜的主开关、操作机构及元器件采用ABB公司原装件或采用进口部件国内组装生产的SFL-12/24型开关设备，也可根据用户
需要配装ABB公司原装HAD/US型。断路器或VD4-S型真空断路器。 其操作方式分为动、电动两种。
柜体经数控机床加工后铆接而成，防护等级达到IP3X，并有可靠的机械联锁和防误操作功能。本产品具有体积小、重量轻、外
型美观、操作简便、长寿命、高参数、无污染、少维护等极具显著的特点。
HXGN15-12(SF6) 型单元式交流金属封闭环网开关设备， 适用于交50Hz、12kV的电力网络中，作为电能的接受和分配之用。
柜内主开关为SF6开关。
Type HXGN15-12(SF6) unit AC metal enclosed ring switchgear ( hereinafter referred to as ring main unit) is designed by us
based on the advanced technolofy both at home and abroad and also on the requirement of rural and urban grid upgrade and
each technical performance of the ring main unit complies with standards of IEC62271-200:2003 and GB3906.
For the main switch, mechanism and elements of the ring main unit ,the original parts from ABB or SFL-12/24 switchgear which
is imported and assembled in China are adopted .Also type HAD/US circuit breaker or type VD4-S vacuum circuit breaker from
ABB can be used as the customer’s requirement.The operating mechanism has such two types as manual and motorized
type .
The cabinet body is made by way of rivet and The protection grade is IP3X and it also has reliable emechanical interlock and
maloperatino-prevention function . The product has such features as small size, light weight, good-looking appearance ,simple
operation , long life ,high data , no pollution and less maintenance etc.
Type HXGN15-12(SF6) ring main unit is suitable for the 50HZ and 12kV power grid for receiving and distributing power and
the main switch in the cabinet is SF6 switch.

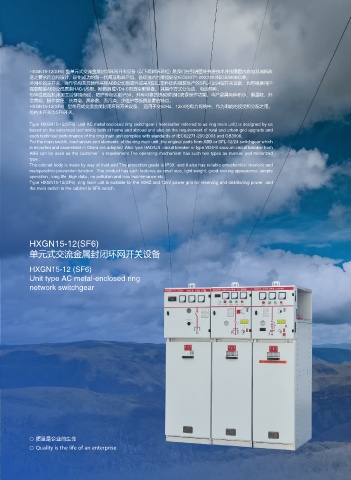

HXGN15-12(SF6)
单元式交流金属封闭环网开关设备

HXGN15-12 (SF6)
Unit type AC metal-enclosed ring
network switchgear

质量是企业的生命
Quality is the life of an enterprise
