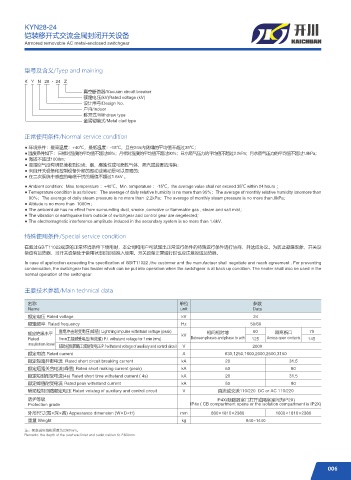

KYN28-24
铠装移开式交流金属封闭开关设备
Armored removable AC metal-enclosed switchgear

型号及含义/Tyep and maining

K Y N 28 - 24 Z
真空断路器/Vacuum circuit breaker
额定电压(kV)Rated voltage (kV)
设计序号/Design No.
户内/Indoor
移开式/Withdraw type
金属铠装式/Metal clad type

正常使用条件/Normal service condition

● 环境条件：最高温度：+40℃，最低温度：-15℃，且在24h内测得的平均值不超过35℃；
● 温度条件如下 ：日相对湿度的平均值不超过95%；月相对湿度的平均值不超过90%；日水蒸气压力的平均值不超过2.2kPa；月水蒸气压力的平均值不超过1.8kPa；
● 海拔不超过1000m；
● 周围空气没有明显地收到尘埃、烟、腐蚀性或可燃性气体、蒸汽或盐雾的污染；
● 来自开关设备和控制设备外部的振动或地动是可以忽略的；
● 在二次系统中感应的电磁干扰的幅值不超过1.6kV 。
● Ambient condition：Max. temperature ：+40℃，Min. temperature ：-15℃，the average value shall not exceed 35℃ within 24 hours ；
● Temeprature condition is as follows：The average of daily relative humidity is no more than 95%；The average of monthly relative humidity isnomore than
90%；The average of daily steam pressure is no more than 2.2kPa；The average of monthly steam pressure is no more than.8kPa；
● Altitude is no more than 1000m；
● The ambient air has no effect from surrounding dust, smoke ,corrosive or flammable gas , steam and salt mist；
● The vibration or earthquake from outside of switchgear and control gear are negelected；
● The electromagnetic interference amplitude induced in the secondary system is no more than 1.6kV.

特殊使用条件/Special service condition
在超过GB/T11022规定的正常环境条件下使用时，本公司和用户可就超出正常运行条件的特殊运行条件进行协商，并达成协议。为防止凝露现象，开关设
备设有加热器，当开关设备处于备用状态时即应投入使用。开关设备正常运行时也应注意投运加热器。
In case of application exceeding the specification of GB/T11022 ,the customer and the manufactuer shall negotiate and reach agreement . For preventing
condensation, the switchgear has heater which can be put into operation when the switchgear is at back up condition. The heater shall also be used in the
normal operation of the switchgear.

主要技术参数/Main technical data

名称 单位 参数
Name unit Data
额定电压 Rated voltage kV 24
额定频率 Rated frequency Hz 50/60
额定绝缘水平 雷电冲击耐受电压(峰值) Lightning impulse withstand voltage (peak) kV 相间相对地 60 隔离断口 79
Rated 1min工频耐受电压(有效值) P.f. withstand voltage for 1 min (rms) Between phases and phase to arth 125 Across open contacts 145
insulation level
辅助控制回路工频耐受电压 P.f withstand voltage of auxiliary and control circuit V 2000
额定电流 Rated current A 630,1250,1600,2000,2500,3150
额定短路开断电流 Rated short circuit breaking current kA 20 31.5
额定短路关合电流(峰值) Rated short making current (peak) kA 50 80
额定短时耐受电流(4s) Rated short time withstand current ( 4s) kA 20 31.5
额定峰值耐受电流 Rated peak withstand current kA 50 80
辅助控制回路额定电压 Rated volateg of auxiliary and control circuit V 直流或交流110/220 DC or AC 110/220
防护等级 IP4X(断路器室门打开或隔室室间为IP2X)
Protection grade IP4x ( CB compartment opens or the isolation compartment is IP2X)
外形尺寸(宽×深×高) Appearance dimension (W×D×H) mm 800×1810×2380 1000×1810×2380
重量 Weight kg 840~1440
注：架空进出线柜深度为2360mm。
Remarks: the depth of the overhead inlet and outlet cabien tis 2360mm.
