KYN28-24型铠装移开式交流金属封闭开关设备(以下简称开关设备)，适用于户内三相50/60Hz、额定电压24kV的电力系统中，
主要应用于发电厂，变电所、工矿企业及高层建筑中，作为接受和分配电能并对电路实行控制、保护和监测。
KYN28-24型开关设备具有各种防止误操作的功能，包括防止带负荷移动手车，防止接地开关闭合位置合断路器、防止带电合接
地开关和防止误入带电隔室等功能。开关设备配置性能优良的VS1、VN2系列中置式高压交流真空断路器及固封式真空开关。
开关设备二次回路配置先进可靠的控制保护元件；母线采用热缩绝缘材料或环氧涂覆的绝缘手段，优化电极形状，柜体结构紧
凑，该开关设备是技术先进、性能稳定、结构合理、使用方便、安全可靠的配电设备。

Type KYN28-24 clad AC metal enclosed switchgear ( herein after referred to as switchgear) is suitable for 3-phase indoor
50/60Hz and 24kV ( rated voltage ) power system and is used mianly in power plant ,substation and enterprise and high
building as power receipt and distribution and monitors , protects and controls the electric circuit.
Type KYN28-24 clad AC metal enclosed switchgear has various functions tot prevent incorrect operation ,prevent to move the
handcart with load ,prevent the circuit breaker from closed when the earthing switch is at closed position and prevent to make
earthing switch at live condition and to enter into the live isolation compartment .The switchgear has excellent VS1 and VS2
series HV AC vacuum circuit breaker and fixed vacuum switchgear .The secondary circuit of the switch has reliable control and
prptection elements ; The busbar adopts thermal shrinkage insulation material or exposy coating insulation means to optimize
electrode shape. The cabinet is compact in structure and the switchgear is distribution equipment with advanced technology,
stable performance, resoanble structure, convenient application ,safe and stable feature.

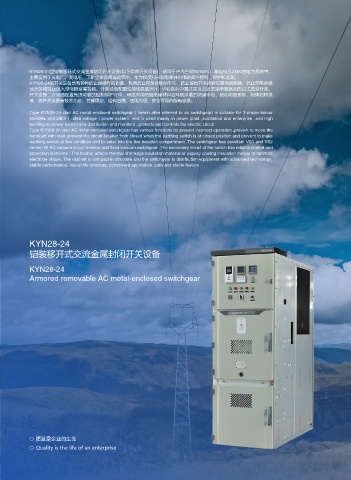

KYN28-24
铠装移开式交流金属封闭开关设备

KYN28-24
Armored removable AC metal-enclosed switchgear
