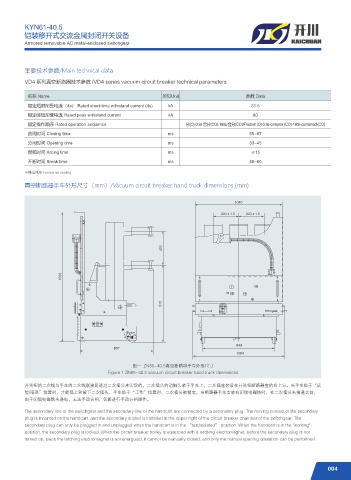

P. 15
KYN61-40.5
铠装移开式交流金属封闭开关设备
Armored removable AC metal-enclosed switchgear
主要技术参数/Main technical data
VD4 系列真空断路器技术参数 /VD4 series vacuum circuit breaker technical parameters
名称 Name 单位Unit 参数 Data
额定短时耐受电流（4s） Rated short-time withstand current (4s) kA 31.5
额定峰值耐受电流 Rated peak withstand current kA 80
额定操作顺序 Rated operation sequence 分(O)-0.3s-合分(CO)-180s-合分(CO)/Fraction (O)-0.3s-complex (CO)-180s-combined (CO)
合闸时间 Closing time ms 55~67
分闸时间 Opening time ms 33~45
燃弧时间 Arcing time ms ≤15
开断时间 Break time ms 48~60
※强迫风冷 Forced air cooling
真空断路器手车外形尺寸（mm）/Vacuum circuit breaker hand truck dimensions (mm)
1040
300±1.5 300±1.5
400
1536
910
849
867
1084
图一 ZN85-40.5真空断路器手车外形尺寸
Figure 1 ZN85-40.5 vacuum circuit breaker hand truck dimensions
开关柜的二次线与手车的二次线联接是通过二次插头来实现的。二次插头的动触头装于手车上，二次插座装设在开关柜断路器室的右上方。当手车处于“试
验/隔离”位置时，才能插上和拔下二次插头。手车处于“工作”位置时，二次插头被锁定。当断路器手车安装有闭锁电磁铁时，在二次插头未接通之前，
由于闭锁电磁铁未通电，无法手动合闸，仅能进行手动分闸操作。
The secondary line of the switchgear and the secondary line of the handcart are connected by a secondary plug. The moving contact of the secondary
plug is mounted on the handcart, and the secondary socket is installed in the upper right of the circuit breaker chamber of the switchgear. The
secondary plug can only be plugged in and unplugged when the handcart is in the “test/isolated” position. When the handcart is in the "working"
position, the secondary plug is locked. When the circuit breaker trolley is equipped with a latching electromagnet, before the secondary plug is not
turned on, since the latching electromagnet is not energized, it cannot be manually closed, and only the manual opening operation can be performed.
