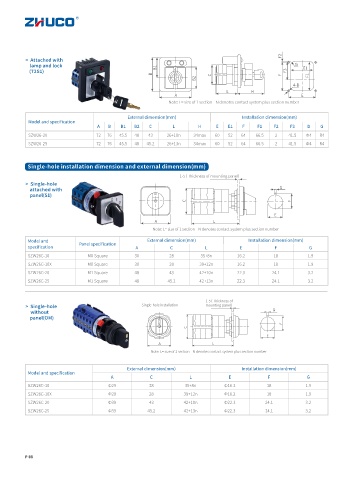

F2
> Attached with
lamp and lock B1 G E1
(72S1) F3
B C F F1
B2
4-D
L H
A E
Note: L= size of 1 section N denotes contact system plus section number

External dimension(mm) Installation dimension(mm)
Model and specification
A B B1 B2 C L H E E1 F F1 F2 F3 D G
SZW26-20 72 76 45.5 48 43 26+10n 34max 60 52 64 66.5 2 41.5 Φ4 R4
SZW26-25 72 76 45.5 48 45.2 26+13n 34max 60 52 64 66.5 2 41.5 Φ4 R4

Single-hole installation dimension and external dimension(mm)
1-5（ Thickness of mounting panel）
> Single-hole
G
attached with
panel(S1)
C F

E
A L
Note: L= size of 1 section N denotes contact system plus section number
Model and External dimension(mm) Installation dimension(mm)
Panel specification
specification A C L E F G
SZW26C-10 M0 Square 30 28 35+8n 16.2 18 1.9
SZW26C-10X M0 Square 30 28 39+12n 16.2 18 1.9
SZW26C-20 M1 Square 48 43 42+10n 22.3 24.1 3.2
SZW26C-25 M1 Square 48 45.2 42+13n 22.3 24.1 3.2

1-5（ Thickness of
Single-hole installation mounting panel）
> Single-hole
G
without
panel(OM)
F
C
E
A L
Note: L= size of 1 section N denotes contact system plus section number

External dimension(mm) Installation dimension(mm)
Model and specification
A C L E F G
SZW26C-10 Φ29 28 35+8n Φ16.2 18 1.9
SZW26C-10X Φ29 28 39+12n Φ16.2 18 1.9
SZW26C-20 Φ39 43 42+10n Φ22.3 24.1 3.2
SZW26C-25 Φ39 45.2 42+13n Φ22.3 24.1 3.2
