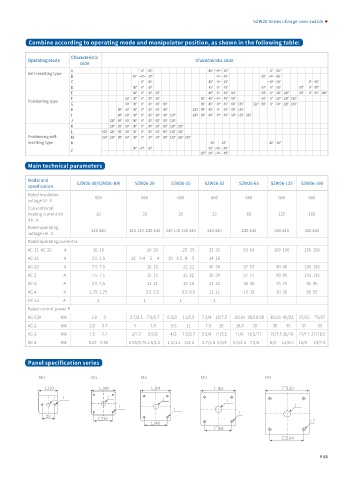

SZW26 Series change-over switch

Combine according to operating mode and manipulator position, as shown in the following table:

Characteristic
Operating mode Characteristic code
code
A 0° 30° 45° 0° 45° 0° 60°
Self-resetting type

B 30° 0° 30° 0° 45° 60° 0° 60°
C 0° 30° 45° 0° 45° 0° 60° 0° 90°
D 30° 0° 30° 45° 0° 45° 60° 0° 60° 90° 0° 90°
E 30° 0° 30° 60° 45° 0° 45° 90° 60° 0° 60° 120° 90° 0° 90° 180°
F 60° 30° 0° 30° 60° 90° 45° 0° 45° 90° 60° 0° 60° 120° 180°
Positioning type
G 60° 30° 0° 30° 60° 90° 90° 45° 0° 45° 90° 135° 120° 60° 0° 60° 120° 180°
H 90° 60° 30° 0° 30° 60° 90° 130° 90° 45° 0° 45° 90° 135°
I 90° 60° 30° 0° 30° 60° 90° 120° 130° 90° 45° 0° 45° 90° 135° 180°
J 120° 90° 60° 30° 0° 30° 60° 90° 120°
K 120° 90° 60° 30° 0° 30° 60° 90° 120° 150°
L 150° 120° 90° 60° 30° 0° 30° 60° 90° 120° 150°
Positioning self- M 150° 120° 90° 60° 30° 0° 30° 60° 90° 120° 150° 180°
resetting type N 45° 45° 30° 30°
30° 0° 30° 90° 0° 45°
Z
135° 90° 0° 45°
Main technical parameters

Model and
SZW26-10/SZW26-10X SZW26-20 SZW26-25 SZW26-32 SZW26-63 SZW26-125 SZW26-160
specification
Rated insulation
660 660 660 660 660 660 660
voltage Ui V
Conventional
heating current Ith 10 20 25 32 63 125 160
Ith A
Rated operating
240 440 240 110 240 440 240 110 240 440 240 440 240 440 240 440 240 440
voltage Ue V
Rated operating current Ie
AC-21 AC-22 A 10 10 20 20 25 25 32 32 63 63 100 100 150 150
AC-15 A 2.5 1.5 12 0.4 5 4 20 0.5 8 5 14 16
AC-23 A 7.5 7.5 15 15 22 22 30 30 57 57 90 90 135 135
AC-2 A 7.5 7.5 15 15 22 22 30 30 57 57 90 90 135 135
AC-3 A 5.5 5.5 11 11 15 15 22 22 36 36 75 75 95 95
AC-4 A 1.75 1.75 3.5 3.5 6.5 6.5 11 11 15 15 30 30 55 55
DC-13 A 1 1 1 1
Rated control power P
AC-23A KW 1.8 3 3.7/2.5 7.5/3.7 5.5/3 11/5.5 7.5/4 15/7.5 15/10 30/18.58 30/15 45/22 37/22 75/37
AC-2 KW 2.5 3.7 4 7.5 5.5 11 7.5 15 18.5 30 30 45 37 55
AC-3 KW 1.5 2.2 3/2.2 5.5/3 4/3 7.5/3.7 5.5/4 11/5.5 11/6 18.5/11 15/7.5 30/16 22/11 37/18.5
AC-4 KW 0.37 0.55 0.55/0.75 1.5/1.5 1.5/1.1 3/2.2 2.7/1.5 5.5/3 5.5/2.4 7.5/4 6/3 12/5.5 10/4 15/7.5

Panel specification series

M0 M1 M2 M3 M4
□30 □48 □64 □83 □130

! ! ! !
!
! !
!
!
20
□36
□48 ! 7
□68
□104

P 03
