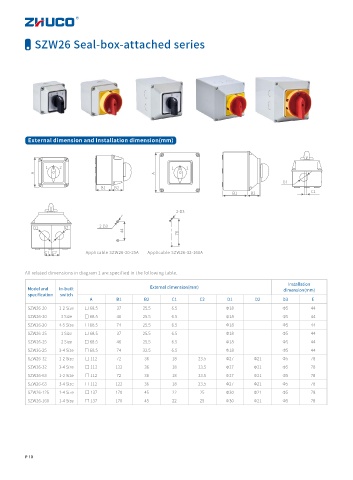

SZW26 Seal-box-attached series

External dimension and Installation dimension(mm)

1 2 1 2
A A
D1
B1 B2
B1 B2 C1

2-D3

D1 D2 2-D3
44
78

C1 C2 Applicable SZW26-20-25A Applicable SZW26-32-160A

All related dimensions in diagram 1 are specified in the following table.

Installation
External dimension(mm)
Model and In-built dimension(mm)
specification switch
A B1 B2 C1 C2 D1 D2 D3 E
SZW26-20 1-2 Size □ 68.5 37 25.5 6.5 Φ18 Φ5 44
SZW26-20 3 Size □ 68.5 46 25.5 6.5 Φ18 Φ5 44
SZW26-20 4-5 Size □ 68.5 74 25.5 6.5 Φ18 Φ5 44
SZW26-25 1 Size □ 68.5 37 25.5 6.5 Φ18 Φ5 44
SZW26-25 2 Size □ 68.5 46 25.5 6.5 Φ18 Φ5 44
SZW26-25 3-4 Size □ 68.5 74 32.5 6.5 Φ18 Φ5 44
SZW26-32 1-2 Size □ 112 72 36 18 23.5 Φ27 Φ21 Φ5 78
SZW26-32 3-4 Size □ 112 122 36 18 23.5 Φ27 Φ21 Φ5 78
SZW26-63 1-2 Size □ 112 72 36 18 23.5 Φ27 Φ21 Φ5 78
SZW26-63 3-4 Size □ 112 122 36 18 23.5 Φ27 Φ21 Φ5 78
SZW26-125 1-4 Size □ 137 170 45 22 25 Φ30 Φ21 Φ5 78
SZW26-160 1-4 Size □ 137 170 45 22 25 Φ30 Φ21 Φ5 78

P 10
