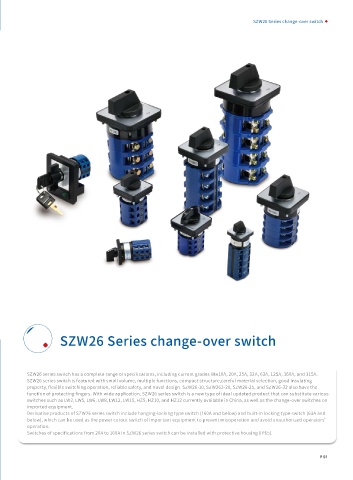

SZW26 Series change-over switch
SZW26 Series change-over switch
SZW26 series switch has a complete range of specifications, including current grades like10A, 20A, 25A, 32A, 63A, 125A, 160A, and 315A.
SZW26 series switch is featured with small volume, multiple functions, compact structure,careful material selection, good insulating
property, flexible switching operation, reliable safety, and novel design. SZW26-10, SZW263-20, SZW26-25, and SZW26-32 also have the
function of protecting fingers. With wide application, SZW26 series switch is a new type of ideal updated product that can substitute various
switches such as LW2, LW5, LW6, LW8, LW12, LW15, HZ5, HZ10, and HZ12 currently available in China, as well as the change-over switches on
imported equipment.
Derivative products of SZW26 series switch include hanging-locking type switch (160A and below) and built-in locking type switch (63A and
below), which can be used as the power cutout switch of important equipment to prevent misoperation and avoid unauthorized operators’
operation.
Switches of specifications from 20A to 160A in SZW26 series switch can be installed with protective housing (IP65).
