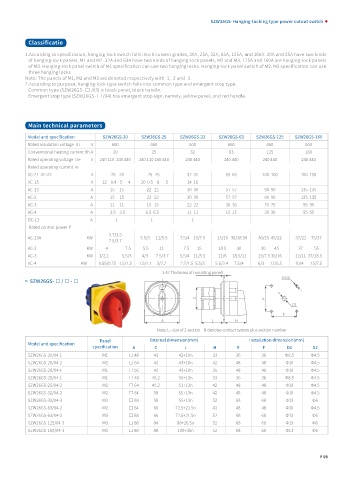

Page 13 - WENZHOU ZHUOCHAO ELECTRIC CO.,LTD.

SZW26GS-Hanging-locking type power cutout switch

Classificatio
1.According to specification, hanging-lock switch falls into 6 current grades, 20A, 25A, 32A, 63A, 125A, and 160A. 20A and 25A have two kinds
of hanging-lock panels, M1 and M2. 32A and 63A have two kinds of hanging-lock panels, M2 and M3. 125A and 160A are hanging-lock panels
of M3. Hanging-lock panel switch of M1 specification can use two hanging locks. Hanging-lock panel switch of M2, M3 specification can use
three hanging locks
Note: The panels of M1, M2 and M3 are denoted respectively with -1, -2 and -3.
2.According to purpose, hanging-lock type switch falls into common type and emergent stop type.
Common type (SZW26GS- □ /03) is black panel, black handle.
Emergent stop type (SZW26GS- □ /04) has emergent stop sign, namely, yellow panel, and red handle.

Main technical parameters

Model and specification SZW26GS-20 SZW26GS-25 SZW26GS-32 SZW26GS-63 SZW26GS-125 SZW26GS-160
Rated insulation voltage Ui V 660 660 660 660 660 660
Conventional heating current Ith A 20 25 32 63 125 160
Rated operating voltage Ue V 240 110 240 440 240 110 240 440 240 440 240 440 240 440 240 440
Rated operating current Ie
AC-21 AC-22 A 20 20 25 25 32 32 63 63 100 100 150 150
AC-15 A 12 0.4 5 4 20 0.5 8 5 14 16
AC-23 A 15 15 22 22 30 30 57 57 90 90 135 135
AC-2 A 15 15 22 22 30 30 57 57 90 90 135 135
AC-3 A 11 11 15 15 22 22 36 36 75 75 95 95
AC-4 A 3.5 3.5 6.5 6.5 11 11 15 15 30 30 55 55
DC-13 A 1 1 1
Rated control power P
3.7/2.5
AC-23A KW 5.5/3 11/5.5 7.5/4 15/7.5 15/10 30/18.58 30/15 45/22 37/22 75/37
7.5/3.7
AC-2 KW 4 7.5 5.5 11 7.5 15 18.5 30 30 45 37 55
AC-3 KW 3/2.2 5.5/3 4/3 7.5/3.7 5.5/4 11/5.5 11/6 18.5/11 15/7.5 30/16 22/11 37/18.5
AC-4 KW 0.55/0.75 1.5/1.5 1.5/1.1 3/2.2 2.7/1.5 5.5/3 5.5/2.4 7.5/4 6/3 12/5.5 10/4 15/7.5
1-5（ Thickness of mounting panel）
4-D2
> SZW26GS- □ / □ - □
OFF
C F
D1
E
A L H
Note: L= size of 2 section N denotes contact system plus section number

Panel External dimension(mm) Installation dimension(mm)
Model and specification
specification A C L H E F D1 D2
SZW26GS-20/04-1 M1 □ 48 43 42+10n 33 36 36 Φ8.5 Φ4.5
SZW26GS-20/04-2 M2 □ 64 43 43+10n 42 48 48 Φ10 Φ4.5
SZW26GS-20/04-F M1 □ 56 43 43+10n 35 48 48 Φ10 Φ4.5
SZW26GS-25/04-1 M1 □ 48 45.2 50+13n 33 36 36 Φ8.5 Φ4.5
SZW26GS-25/04-2 M2 □ 64 45.2 51+13n 42 48 48 Φ10 Φ4.5
SZW26GS-32/04-2 M2 □ 64 58 55+13n 42 48 48 Φ10 Φ4.5
SZW26GS-32/04-3 M3 □ 88 58 55+13n 52 68 68 Φ13 Φ6
SZW26GS-63/04-2 M2 □ 64 66 72.5+21.5n 42 48 48 Φ10 Φ4.5
SZW26GS-63/04-3 M3 □ 88 66 72.5+21.5n 52 68 68 Φ13 Φ6
SZW26GS-125/04-3 M3 □ 88 84 88+26.5n 52 68 68 Φ13 Φ6
SZW26GS-160/04-3 M3 □ 88 88 100+36n 52 68 68 Φ13 Φ6

P 09
