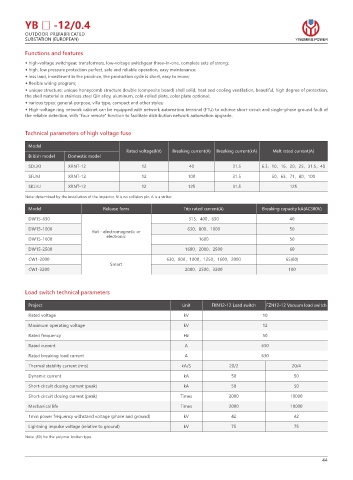

YB □ -12/0.4
OUTDOOR PREFABRICATED
SUBSTATION (EUROPEAN) YINGMING POWER
Functions and features

◆ high-voltage switchgear, transformers, low-voltage switchgear three-in-one, complete sets of strong;
◆ high, low pressure protection perfect, safe and reliable operation, easy maintenance;
◆ less land, investment in the province, the production cycle is short, easy to move;
◆ flexible wiring program;
◆ unique structure: unique honeycomb structure double (composite board) shell solid, heat and cooling ventilation, beautiful, high degree of protection,
the shell material is stainless steel Qin alloy, aluminum, cold-rolled plate, color plate optional;
◆ various types: general-purpose, villa type, compact and other styles;
◆ High-voltage ring network cabinet can be equipped with network automation terminal (FTU) to achieve short-circuit and single-phase ground fault of
the reliable detection, with "four remote" function to facilitate distribution network automation upgrade.

Technical parameters of high voltage fuse

Model
Rated voltage(kV) Breaking current(A) Breaking current(kA) Melt rated current(A)
British model Domestic model
SDL※J XRNT-12 12 40 31.5 6.3，10，16，20，25，31.5，40
SFL※J XRNT-12 12 100 31.5 50，63，71，80，100

SKL※J XRNT-12 12 125 31.5 125
Note: determined by the installation of the impactor, N is no collision pin, A is a striker.
Model Release form Trip rated current(A) Breaking capacity kA(AC380V)

DW15-630 315，400，630 40
DW15-1000 630，800，1000 50
Hot - electromagnetic or
electronic
DW15-1600 1600 50
DW15-2500 1600，2000，2500 60
CW1-2000 630，800，1000，1250，1600，2000 65(80)
Smart
CW1-3200 2000，2500，3200 100

Load switch technical parameters

Project Unit FKN12-12 Load switch FZN12-12 Vacuum load switch
Rated voltage kV 10
Maximum operating voltage kV 12
Rated frequency Hz 50
Rated current A 630
Rated breaking load current A 630
Thermal stability current (rms) kA/S 20/2 20/4
Dynamic current kA 50 50

Short-circuit closing current (peak) kA 50 50
Short-circuit closing current (peak) Times 2000 10000
Mechanical life Times 2000 10000
1min power frequency withstand voltage (phase and ground) kV 42 42
Lightning impulse voltage (relative to ground) kV 75 75
Note: (80) for the polymer broken type.
