YINGMING POWER

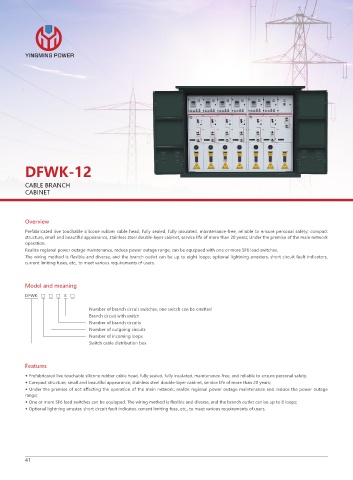

DFWK-12

CABLE BRANCH
CABINET

Overview
Prefabricated live touchable silicone rubber cable head, fully sealed, fully insulated, maintenance-free, reliable to ensure personal safety; compact
structure, small and beautiful appearance, stainless steel double-layer cabinet, service life of more than 20 years; Under the premise of the main network
operation.
Realize regional power outage maintenance, reduce power outage range; can be equipped with one or more SF6 load switches.
The wiring method is flexible and diverse, and the branch outlet can be up to eight loops; optional lightning arresters, short circuit fault indicators,
current limiting fuses, etc., to meet various requirements of users.

Model and meaning

DFWK □ □ □ K □
Number of branch circuit switches, one switch can be omitted
Branch circuit with switch
Number of branch circuits
Number of outgoing circuits
Number of incoming loops
Switch cable distribution box

Features
◆ Prefabricated live touchable silicone rubber cable head, fully sealed, fully insulated, maintenance-free, and reliable to ensure personal safety;
◆ Compact structure, small and beautiful appearance, stainless steel double-layer cabinet, service life of more than 20 years;
◆ Under the premise of not affecting the operation of the main network, realize regional power outage maintenance and reduce the power outage
range;
◆ One or more SF6 load switches can be equipped. The wiring method is flexible and diverse, and the branch outlet can be up to 8 loops;
◆ Optional lightning arrester, short circuit fault indicator, current limiting fuse, etc., to meet various requirements of users.

41
