YINGMING POWER

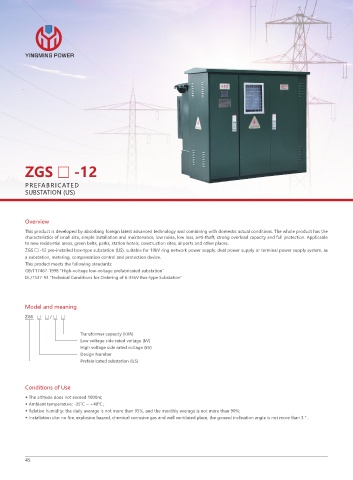

ZGS □ -12

PREFABRICATED
SUBSTATION (US)

Overview
This product is developed by absorbing foreign latest advanced technology and combining with domestic actual conditions. The whole product has the
characteristics of small size, simple installation and maintenance, low noise, low loss, anti-theft, strong overload capacity and full protection. Applicable
to new residential areas, green belts, parks, station hotels, construction sites, airports and other places.
ZGS □ -12 pre-installed box-type substation (US), suitable for 10kV ring network power supply, dual power supply or terminal power supply system, as
a substation, metering, compensation control and protection device.
This product meets the following standards:
GB/T17467-1998 "High-voltage low-voltage prefabricated substation"
DL/T537-93 "Technical Conditions for Ordering of 6-35kV Box-type Substation"

Model and meaning
ZGS □ □ / □ □

Transformer capacity (kVA)
Low voltage side rated voltage (kV)
High voltage side rated voltage (kV)
Design Number
Prefabricated substation (US)

Conditions of Use
◆ The altitude does not exceed 1000m;
◆ Ambient temperature: -35℃ ~ +40℃ ;
◆ Relative humidity: the daily average is not more than 95%, and the monthly average is not more than 90%;
◆ Installation site: no fire, explosion hazard, chemical corrosive gas and well ventilated place, the ground inclination angle is not more than 3 ° .

45
