YINGMING POWER

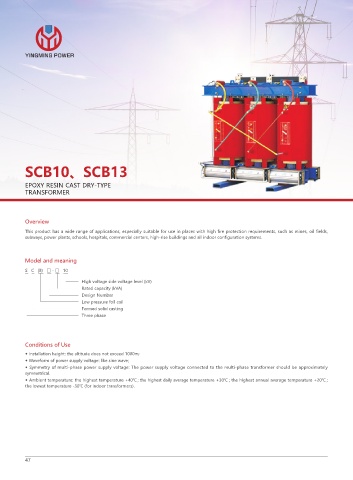

SCB10、SCB13
EPOXY RESIN CAST DRY-TYPE
TRANSFORMER
Overview
This product has a wide range of applications, especially suitable for use in places with high fire protection requirements, such as mines, oil fields,
subways, power plants, schools, hospitals, commercial centers, high-rise buildings and all indoor configuration systems.
Model and meaning
S C (B) □ - □ 10
High voltage side voltage level (kV)
Rated capacity (kVA)
Design Number
Low pressure foil coil
Formed solid casting
Three phase
Conditions of Use
◆ Installation height: the altitude does not exceed 1000m;
◆ Waveform of power supply voltage: like sine wave;
◆ Symmetry of multi-phase power supply voltage: The power supply voltage connected to the multi-phase transformer should be approximately
symmetrical.
◆ Ambient temperature: the highest temperature +40℃ ; the highest daily average temperature +30℃ ; the highest annual average temperature +20℃ ;
the lowest temperature -30℃ (for indoor transformers).
47
