YINGMING POWER

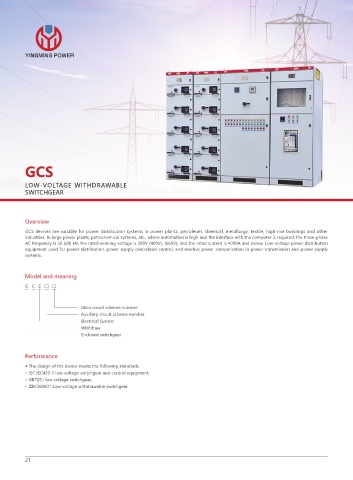

GCS
LOW-VOLTAGE WITHDRAWABLE
SWITCHGEAR
Overview
GCS devices are suitable for power distribution systems in power plants, petroleum, chemical, metallurgy, textile, high-rise buildings and other
industries. In large power plants, petrochemical systems, etc., where automation is high and the interface with the computer is required, the three-phase
AC frequency is 50 (60) Hz, the rated working voltage is 380V (400V), (660V), and the rated current is 4000A and below. Low-voltage power distribution
equipment used for power distribution, power supply centralized control, and reactive power compensation in power transmission and power supply
systems.
Model and meaning
G C S □ □
Main circuit scheme number
Auxiliary circuit scheme number
Electrical System
Withdraw
Enclosed switchgear
Performance
◆ The design of the device meets the following standards
◇ IEC IEC439-1 low-voltage switchgear and control equipment;
◇ GB7251 low voltage switchgear;
◇ ZBK360001 Low-voltage withdrawable switchgear.
