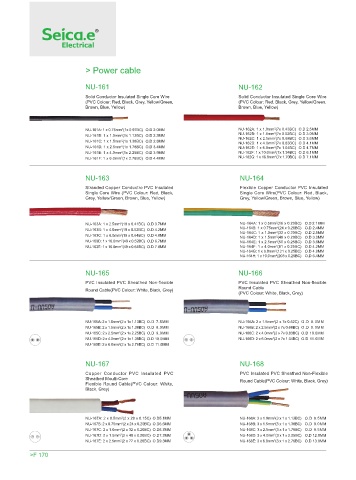

P. 182
> Power cable
NU-161 NU-162
Solid Conductor Insulated Single Core Wire Solid Conductor Insulated Single Core Wire
(PVC Colour: Red, Black, Grey, Yellow/Green, (PVC Colour: Red, Black, Grey, Yellow/Green,
Brown, Blue, Yellow) Brown, Blue, Yellow)
2
2
NU-161A: 1 x 0.75mm (1x 0.97BC) O.D 2.0MM NU-162A: 1 x 1.0mm (7x 0.43BC) O.D 2.5MM
NU-162B: 1 x 1.5mm (7x 0.52BC) O.D 3.0MM
2
2
NU-161B: 1 x 1.0mm (1x 1.13BC) O.D 2.3MM
2
NU-162C: 1 x 2.5mm (7x 0.68BC) O.D 3.6MM
NU-161C: 1 x 1.5mm (1x 1.38BC) O.D 2.8MM
2
2
NU-162D: 1 x 4.0mm (7x 0.83BC) O.D 4.1MM
2
NU-161D: 1 x 2.5mm (1x 1.78BC) O.D 3.4MM NU-162E: 1 x 6.0mm (7x 1.04BC) O.D 4.7MM
2
2
NU-161E: 1 x 4.0mm (1x 2.25BC) O.D 3.9MM NU-162F: 1 x 10.0mm (7x 1.34BC) O.D 6.1MM
2
2
2
NU-161F: 1 x 6.0mm (1x 2.76BC) O.D 4.4MM NU-162G: 1 x 16.0mm (7x 1.70BC) O.D 7.1MM
NU-163 NU-164
Stranded Copper Conductro PVC Insulated Flexible Copper Conductor PVC Insulated
Single Core Wire (PVC Colour: Red, Black, Single Core Wire(PVC Colour: Red, Black,
Grey, Yellow/Green, Brown, Blue, Yellow) Grey, Yellow/Green, Brown, Blue, Yellow)
2
NU-163A: 1 x 2.5mm (19 x 0.41BC) O.D 3.7MM NU-164A: 1 x 0.5mm (16 x 0.20BC) O.D 2.1 MM
2
2
NU-164B: 1 x 0.75mm (24 x 0.20BC) O.D 2.4MM
NU-163B: 1 x 4.0mm (19 x 0.52BC) O.D 4.2MM
2
2
NU-164C: 1 x 1.0mm (32 x 0.20BC) O.D 2.5MM
2
NU-163C: 1 x 6.0mm (19 x 0.64BC) O.D 4.8MM
NU-164D: 1 x 1.5mm (48 x 0.20BC) O.D 3.0MM
2
NU-163D: 1 x 10.0mm (49 x 0.52BC) O.D 6.7MM NU-164E: 1 x 2.5mm (50 x 0.25BC) O.D 3.6MM
2
2
2
2
NU-163E: 1 x 16.0mm (49 x 0.64BC) O.D 7.8MM NU-164F: 1 x 4.0mm (81 x 0.25BC) O.D 4.2MM
2
NU-164G: 1 x 6.0mm (121 x 0.25BC) O.D 4.8MM
2
NU-164H: 1 x 10.0mm (203 x 0.25BC) O.D 6.4MM
NU-165 NU-166
PVC Insulated PVC Sheathed Non-flexible PVC Insulated PVC Sheathed Non-flexible
Round Cable
Round Cable(PVC Colour: White, Black, Grey)
(PVC Colour: White, Black, Grey)
2
2
NU-165A: 2 x 1.0mm (2 x 1x 1.13BC) O.D 7.5MM NU-166A: 2 x 1.5mm (2 x 7x 0.52C) O.D 8.0MM
2
NU-165B: 2 x 1.5mm (2 x 1x 1.38BC) O.D 8.0MM NU-166B: 2 x 2.5mm (2 x 7x 0.68BC) O.D 9.0MM
2
2
NU-165C: 2 x 2.5mm (2 x 1x 2.25BC) O.D 9.0MM NU-166C: 2 x 4.0mm (2 x 7x 0.83BC) O.D 10.0MM
2
NU-165D: 2 x 4.0mm (2 x 1x 1.38BC) O.D 10.0MM NU-166D: 2 x 6.0mm (2 x 7x 1.04BC) O.D 11.0MM
2
2
2
NU-165E: 2 x 6.0mm (2 x 1x 2.76BC) O.D 11.0MM
NU-167 NU-168
Copper Conductor PVC Insulated PVC PVC Insulated PVC Sheathed Non-Flexible
Sheathed Moulti-Core
Round Cable(PVC Colour: White, Black, Grey)
Flexible Round Cable(PVC Colour: White,
Black, Grey)
2
2
NU-167A: 2 x 0.5mm (2 x 28 x 0.15C) O.D5.1MM NU-168A: 3 x 1.0mm (3 x 1 x 1.13BC) O.D 8.5MM
2
NU-167B: 2 x 0.75mm (2 x 24 x 0.20BC) O.D6.5MM NU-168B: 3 x 1.5mm (3 x 1 x 1.38BC) O.D 9.0MM
2
2
NU-167C: 2 x 1.0mm (2 x 32 x 0.20BC) O.D6.7MM NU-168C: 3 x 2.5mm (3 x 1 x 1.78BC) O.D 9.5MM
2
2
2
NU-167D: 2 x 1.5mm (2 x 48 x 0.20BC) O.D7.7MM NU-168D: 3 x 4.0mm (3 x 1 x 2.25BC) O.D 12.0MM
NU-167E: 2 x 2.5mm (2 x 77 x 0.20BC) O.D9.3MM NU-168E: 3 x 6.0mm (3 x 1 x 2.76BC) O.D 13.0MM
2
2
>F 170
