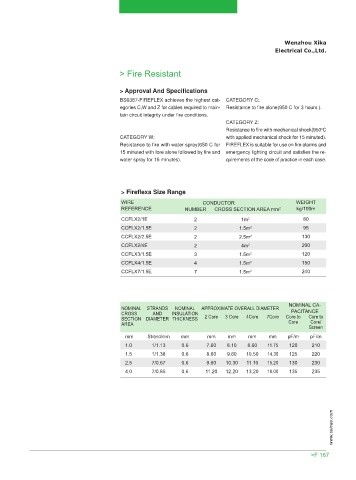

> Fire Resistant

> Approval And Specifications
BS6387-FIREFLEX achieves the highest cat- CATEGORY C:
egories C,W and Z for cables required to main- Resistance to fire alone(950 C for 3 hours ).
tain circuit integrity under fire conditions.
CATEGORY Z:
Resistance to fire with mechanical shock(950 C
o
CATEGORY W: with applied mechanical shock for 15 minuted).
Resistance to fire with water spray(650 C for FIREFLEX is suitable for use on fire alarms and
15 minuted with fore alone followed by fire and emergency lighting circuit and satisfies the re-
water spray for 15 minutes). quirements of the code of practice in each case.

> Fireflexa Size Range

WIRE CONDUCTOR WEIGHT
REFERENCE NUMBER CROSS SECTION AREA mm 2 kg/100m

CCFLX2/1E 2 1m 2 80
CCFLX2/1.5E 2 1.5m 2 95
CCFLX2/2.5E 2 2.5m 2 130
CCFLX2/4E 2 4m 2 200
CCFLX3/1.5E 3 1.5m 2 120
CCFLX4/1.5E 4 1.5m 2 150
CCFLX7/1.5E 7 1.5m 2 240

NOMINAL CA-
NOMINAL STRANDS NOMINAL APPROXIMATE OVERALL DIAMETER
CROSS AND INSULATION PACITANCE
SECTION DIAMETER THICKNESS 2 Core 3 Core 4Core 7Core Core to Core to
AREA Core Core/
Screen
mm Strand/mm mm mm mm mm mm pF/m pF/m
1.0 1/1.13 0.6 7.60 8.10 8.60 11.75 120 210
1.5 1/1.38 0.6 8.60 9.60 10.50 14.30 125 220
2.5 7/0.67 0.6 9.60 10.30 11.10 15.20 130 230
4.0 7/0.85 0.6 11.20 12.20 13.20 18.00 135 235
