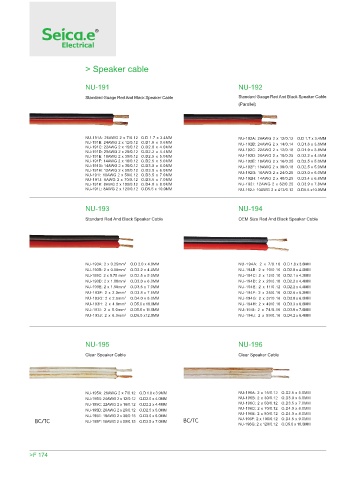

P. 186
> Speaker cable
NU-191 NU-192
Standard Guage Red And Black Speaker Cable Standard Guage Red And Black Speaker Cable
(Parallel)
NU-191A: 26AWG 2 x 7/0.12 O.D 1.7 x 3.4MM NU-192A: 26AWG 2 x 12/0.12 O.D 1.7 x 3.4MM
NU-191B: 24AWG 2 x 12/0.12 O.D1.8 x 3.6MM NU-192B: 24AWG 2 x 14/0.14 O.D1.8 x 3.6MM
NU-191C: 22AWG 2 x 15/0.12 O.D2.0 x 4.0MM
NU-191D: 20AWG 2 x 20/0.12 O.D2.2 x 4.4MM NU-192C: 22AWG 2 x 12/0.18 O.D1.9 x 3.8MM
NU-191E: 18AWG 2 x 30/0.12 O.D2.5 x 5.0MM NU-192D: 20AWG 2 x 10/0.25 O.D2.2 x 4.4MM
NU-191F: 14AWG 2 x 18/0.12 O.D2.5 x 5.0MM NU-192E: 18AWG 2 x 16/0.25 O.D2.5 x 5.0MM
NU-191G: 14AWG 2 x 30/0.12 O.D3.0 x 6.0MM NU-192F: 18AWG 2 x 30/0.18 O.D2.5 x 5.0MM
NU-191H: 12AWG 2 x 50/0.12 O.D3.0 x 6.0MM NU-192G: 16AWG 2 x 24/0.25 O.D3.0 x 6.0MM
NU-191I: 10AWG 2 x 50/0.12 O.D3.5 x 7.0MM
NU-191J: 8AWG 2 x 70/0.12 O.D3.5 x 7.0MM NU-192H: 14AWG 2 x 40/0.25 O.D3.4 x 6.8MM
NU-191K: 8AWG 2 x 100/0.12 O.D4.0 x 8.0MM NU-192I: 12AWG 2 x 62/0.25 O.D3.9 x 7.8MM
NU-191L: 8AWG 2 x 120/0.12 O.D5.5 x 10.0MM NU-192J: 10AWG 2 x 413/0.12 O.D5.5 x10.0MM
NU-193 NU-194
Standard Red And Black Speaker Cable OEM Size Red And Black Speaker Cable
NU-193A: 2 x 0.25mm 2 O.D 2.0 x 4.0MM NU-194A: 2 x 7/0.10 O.D 1.8 x 3.6MM
NU-193B: 2 x 0.50mm 2 O.D2.2 x 4.4MM NU-194B: 2 x 10/0.10 O.D2.0 x 4.0MM
NU-193C: 2 x 0.75 mm 2 O.D2.5 x 5.0MM NU-194C: 2 x 12/0.10 O.D2.1 x 4.2MM
NU-193D: 2 x 1.00mm 2 O.D3.0 x 6.0MM NU-194D: 2 x 20/0.10 O.D2.2 x 4.4MM
NU-193E: 2 x 1.50mm 2 O.D3.5 x 7.0MM NU-194E: 2 x 11/0.12 O.D2.2 x 4.4MM
NU-193F: 2 x 2.0mm 2 O.D3.8 x 7.5MM NU-194F: 2 x 25/0.16 O.D2.6 x 5.2MM
NU-193G: 2 x 2.5mm 2 O.D4.0 x 8.0MM NU-194G: 2 x 37/0.16 O.D3.0 x 6.0MM
NU-193H: 2 x 4.0mm 2 O.D5.0 x 10.0MM NU-194H: 2 x 49/0.16 O.D3.3 x 6.6MM
NU-193I: 2 x 5.0mm 2 O.D5.5 x 11.0MM NU-194I: 2 x 74/0.16 O.D3.8 x 7.6MM
NU-193J: 2 x 6.0mm 2 O.D6.0 x12.0MM NU-194J: 2 x 99/0.16 O.D4.2 x 8.4MM
NU-195 NU-196
Clear Speaker Cable Clear Speaker Cable
NU-195A: 26AWG 2 x 7/0.12 O.D 1.8 x 3.9MM NU-196A: 2 x 15/0.12 O.D2.5 x 5.0MM
NU-195B: 24AWG 2 x 12/0.12 O.D2.0 x 4.0MM NU-196B: 2 x 30/0.12 O.D3.0 x 6.0MM
NU-196C: 2 x 50/0.12 O.D3.5 x 7.0MM
NU-195C: 22AWG 2 x 18/0.12 O.D2.2 x 4.4MM
NU-196D: 2 x 70/0.12 O.D4.0 x 8.0MM
NU-195D: 20AWG 2 x 25/0.12 O.D2.5 x 5.0MM
NU-196E: 2 x 80/0.12 O.D4.0 x 8.0MM
NU-195E: 18AWG 2 x 30/0.15 O.D3.0 x 6.0MM
_`Lq` NU-195F: 18AWG 2 x 50/0.15 O.D3.5 x 7.0MM _`Lq` NU-196F: 2 x 100/0.12 O.D4.5 x 9.0MM
NU-196G: 2 x 120/0.12 O.D5.0 x 10.0MM
>F 174
