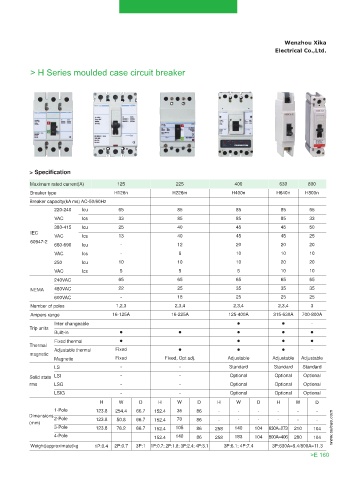

> H Series moulded case circuit breaker

> Specification

Maximum rated current(A) 125 225 400 630 800
Breaker type H126n H226m H400n H640n H800n
Breaker capacity(kA ms) AC-50/60Hz
220-240 lcu 65 85 85 85 65
VAC lcs 33 85 85 85 33
380-415 lcu 25 40 45 45 50
IEC
VAC lcs 13 40 45 45 25
60947-2
660-690 lcu - 12 20 20 20
VAC lcs - 6 10 10 10
250 lcu 10 10 10 20 20
VAC lcs 5 5 5 10 10
240VAC 65 65 65 65 65
NEMA 480VAC 22 25 35 35 35
600VAC - 18 25 25 25
Number of poles 1,2,3 2,3,4 2,3,4 2,3,4 3
Ampers range 16-125A 16-225A 125-400A 315-630A 700-800A
Inter changeable -
Trip units
Built-in
Fixed thermal
Thermal
Adjustable thermal Fixed -
magnetic
Magnetic Fixed Fixed, Opt adj. Adjustable Adjustable Adjustable
LS - - Standard Standard Standard
Solid state LSI - - Optional Optional Optional
rms LSG - - Optional Optional Optional
LSIG - - Optional Optional Optional
H W D H W D H W D H W D
1-Pole 123.8 254.4 66.7 152.4 35 86 - - - - - -
Dimensions 2-Pole 123.8 70 -
(mm) 50.8 66.7 152.4 86 - - - - -
3-Pole 123.8 76.2 66.7 152.4 105 86 258 140 104 630A=273 210 104 www.seicae.com
4-Pole 152.4 140 86 258 183 104 800A=406 280 104
Weight(approximate)kg 1P:0.4 2P:0.7 3P:1 1P:0.7; 2P:1.8; 3P:2.4; 4P:3.1 3P:6.1; 4P:7.4 3P:630A=9.4/800A=11.3
>E 160
