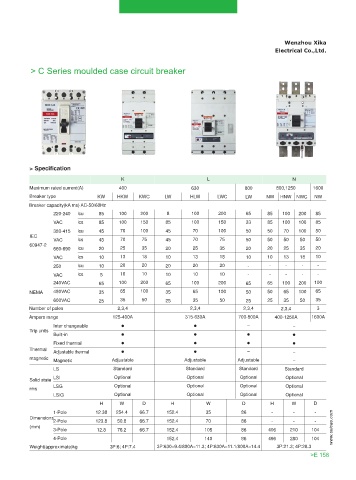

> C Series moulded case circuit breaker

> Specification

K L N
Maximum rated current(A) 400 630 800 800,1250 1600
Breaker type KW HKW KWC LW HLW LWC LW NW HNW NWC NW
Breaker capacity(kA ms) AC-50/60Hz
220-240 lcu 85 100 200 8 100 200 65 85 100 200 85
VAC lcs 85 100 150 85 100 150 33 85 100 100 85
380-415 lcu 45 70 100 45 70 100 50 50 70 100 50
IEC
VAC lcs 45 70 75 45 70 75 50 50 50 50 50
60947-2
660-690 lcu 20 25 35 20 25 35 20 20 25 35 20
VAC lcs 10 13 18 10 13 18 10 10 13 18 10
250 lcu 10 20 20 20 20 20 - - - - -
VAC lcs 5 10 10 10 10 10 - - - - -
240VAC 65 100 200 65 100 200 65 65 100 200 100
NEMA 480VAC 35 65 100 35 65 100 50 50 65 100 65
600VAC 25 35 50 25 35 50 25 25 35 50 35
Number of poles 2,3,4 2,3,4 2,3,4 2,3,4 3
Ampers range 125-400A 315-630A 700-800A 400-1250A 1600A
Inter changeable J J
Trip units
Built-in
Fixed thermal
Thermal Adjustable thermal J J
magnetic Magnetic Adjustable Adjustable Adjustable J

LS Standard Standard Standard Standard
Solid state LSI Optional Optional Optional Optional
rms LSG Optional Optional Optional Optional
LSIG Optional Optional Optional Optional
H W D H W D H W D
1-Pole 12.38 254.4 66.7 152.4 35 86 - - -
Dimensions
2-Pole 123.8 50.8 66.7 152.4 70 86 - - -
(mm)
3-Pole 12.8 76.2 66.7 152.4 105 86 406 210 104 www.seicae.com
4-Pole 152.4 140 86 496 280 104
Weight(approximate)kg 3P:6; 4P:7.4 3P:630=9.4/800A=11.3; 4P:630A=11.1/800A=14.4 3P:21.3; 4P:28.3
