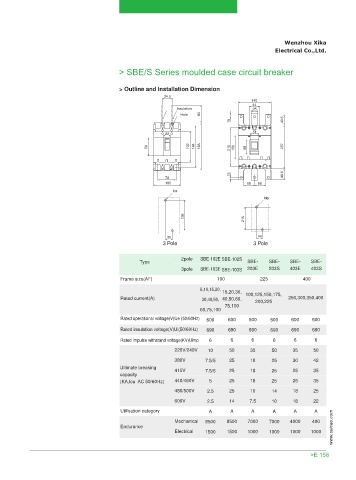

> SBE/S Series moulded case circuit breaker

> Outline and Installation Dimension

2pole SBE-102E SBE-102S
Type SBE- SBE- SBE- SBE-
3pole SBE-103E SBE-103S 203E 203S 403E 403S
Frame size(AF) 100 225 400

5,10,15,20, 15,20,30,
Rated current(A) 30,40,50, 40,50,60, 100,125,150,175, 250,300,350,400
200,225
75,100
60,75,100
Rated operational voltage(V)Ue (50/60Hz) 600 600 600 600 600 600
Rated insulation voltage(V)Ui(50/60Hz) 690 690 690 690 690 690
Rated impulse withstand voltage(KV)Uimp 6 6 6 6 6 6
220V/240V 10 50 35 50 35 50

380V 7.5/5 25 18 25 30 42
Uitimate breaking 415V 7.5/5 25 18 25 25 35
capacity
(KA,Icu AC 50/60Hz) 440/460V 5 25 18 25 25 35
480/500V 2.5 25 10 14 18 25

600V 2.5 14 7.5 10 18 22
Utilisation category A A A A A A
Mechanical 8500 8500 7000 7000 4000 400
Endurance www.seicae.com
Electrical 1500 1500 1000 1000 1000 1000

>E 156
