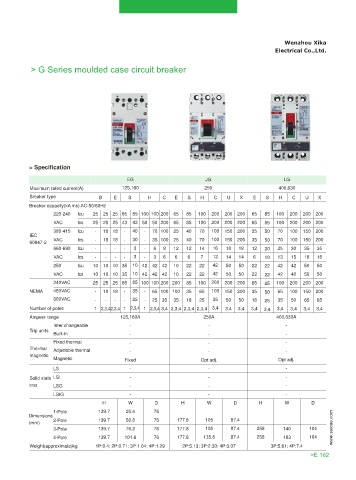

> G Series moulded case circuit breaker

> Specification

EG JG LG
Maximum rated current(A) 125,160 250 400,630
Breaker type B E S H C E S H C U X E S H C U X
Breaker capacity(kA ms) AC-50/60Hz
220-240 lcu 25 25 25 85 85 100 100 200 65 85 100 200 200 200 65 85 100 200 200 200
VAC lcs 25 25 25 43 43 50 50 200 65 85 100 200 200 200 65 85 100 200 200 200
380-415 lcu - 18 18 - 40 - 70 100 25 40 70 100 150 200 35 50 70 100 150 200
IEC
60947-2 VAC lcs - 18 18 - 30 - 35 100 25 40 70 100 150 200 35 50 70 100 150 200
660-690 lcu - - - - 3 - 6 8 12 12 14 16 18 18 12 20 25 30 35 35
VAC lcs - - - - 3 - 3 6 6 6 7 12 14 14 6 10 13 15 18 18
250 lcu 10 10 10 35 10 42 42 42 10 22 22 42 50 50 22 22 42 42 50 50
VAC lcs 10 10 10 35 10 42 42 42 10 22 22 42 50 50 22 22 42 42 50 50
240VAC 25 25 25 85 85 100 100 200 200 85 100 200 200 200 65 85 100 200 200 200
NEMA 480VAC - 18 18 - 35 - 65 100 100 35 65 100 150 200 35 50 65 100 150 200
600VAC - - - - 22 - 25 35 35 18 25 35 50 50 18 25 35 50 65 65
Number of poles 1 2,3,42,3,4 1 2,3,4 1 2,3,4 3,4 2,3,4 2,3,4 2,3,4 3,4 3.4 3,4 3,4 3,4 3,4 3,4 3,4 3,4
Ampers range 125,160A 250A 400,630A
Inter changeable - - -
Trip units
Built-in - - -
Fixed thermal - - -
Thermal Adjustable thermal - - -
magnetic
Magnetic Fixed Opt adj. Opt adj.
LS - - -
Solid state LSI - - -
rms LSG - - -
LSIG - - -
H W D H W D H W D
1-Pole 139.7 25.4 76
Dimensions
(mm) 2-Pole 139.7 50.8 76 177.8 105 87.4
3-Pole 139.7 76.2 76 177.8 105 87.4 258 140 104 www.seicae.com
4-Pole 139.7 101.6 76 177.8 135.6 87.4 258 183 104
Weight(approximate)kg 1P:0.4; 2P:0.71; 3P:1.04; 4P:1.29 2P:5.13; 3P:2.30; 4P:3.07 3P:5.61; 4P:7.4
>E 162
