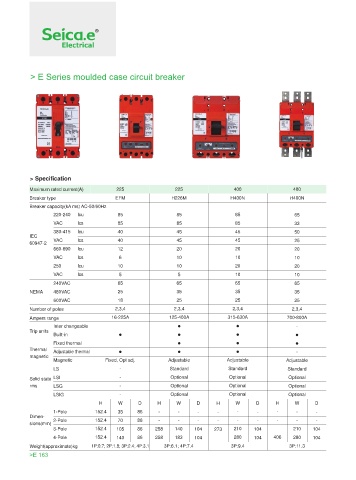

> E Series moulded case circuit breaker

> Specification
Maximum rated current(A) 225 225 400 400
Breaker type EFM H226M H400N H400N
Breaker capacity(kA ms) AC-50/60Hz
220-240 lcu 85 85 85 65
VAC lcs 85 85 85 33
380-415 lcu 40 45 45 50
IEC
60947-2 VAC lcs 40 45 45 25
660-690 lcu 12 20 20 20
VAC lcs 6 10 10 10
250 lcu 10 10 20 20
VAC lcs 5 5 10 10
240VAC 65 65 65 65
NEMA 480VAC 25 35 35 35
600VAC 18 25 25 25
Number of poles 2,3,4 2,3,4 2,3,4 2,3,4
Ampers range 16-225A 125-400A 315-630A 700-800A
Inter changeable -
Trip units
Built-in
Fixed thermal
Thermal Adjustable thermal -
magnetic
Magnetic Fixed, Opt adj. Adjustable Adjustable Adjustable
LS - Standard Standard Standard
Solid state LSI - Optional Optional Optional
rms LSG - Optional Optional Optional
LSIG - Optional Optional Optional
H W D H W D H W D H W D
1-Pole 152.4 35 86 - - - - - - - - -
Dimen-
sions(mm) 2-Pole 152.4 70 86 - - - - - - - - -
3-Pole 152.4 105 86 258 140 104 273 210 104 210 104
4-Pole 152.4 140 86 258 183 104 280 104 406 280 104
Weight(approximate)kg 1P:0.7; 2P:1.8; 3P:2.4; 4P:3.1 3P:6.1; 4P:7.4 3P:9.4 3P:11.3
>E 163
