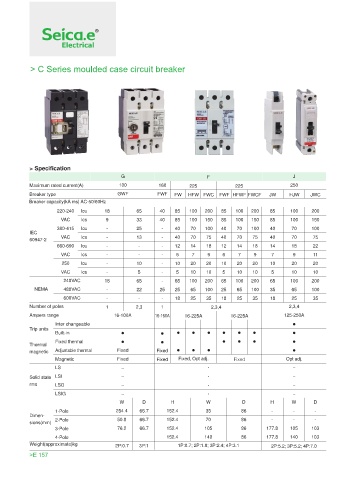

> C Series moulded case circuit breaker

> Specification
G F J
Maximum rated current(A) 100 160 225 225 250
Breaker type GWF FWF FW HFW FWC FWF HFWF FWCF JW HJW JWC
Breaker capacity(kA ms) AC-50/60Hz
220-240 lcu 18 65 40 85 100 200 85 100 200 85 100 200
VAC lcs 9 33 40 85 100 150 85 100 150 85 100 150
380-415 lcu - 25 - 40 70 100 40 70 100 40 70 100
IEC
60947-2 VAC lcs - 13 - 40 70 75 40 70 75 40 70 75
660-690 lcu - - - 12 14 18 12 14 18 14 18 22
VAC lcs - - - 6 7 9 6 7 9 7 9 11
250 lcu - 10 - 10 20 20 10 20 20 10 20 20
VAC lcs - 5 - 5 10 10 5 10 10 5 10 10
240VAC 18 65 - 65 100 200 65 100 200 65 100 200
NEMA 480VAC - 22 25 25 65 100 25 65 100 35 65 100
600VAC - - - 18 25 35 18 25 35 18 25 35
Number of poles 1 2,3 1 2,3,4 2,3,4
Ampers range 16-100A 16-160A 16-225A 16-225A 125-250A
Inter changeable
Trip units
Built-in
Fixed thermal
Thermal
magnetic Adjustable thermal Fixed Fixed
Magnetic Fixed Fixed Fixed, Opt adj. cáñÉÇ Opt adj.
LS - J
Solid state LSI - J
rms LSG - J
LSIG - J
W D H W D H W D
1-Pole 254.4 66.7 152.4 35 86 - - -
Dimen-
sions(mm) 2-Pole 50.8 66.7 152.4 70 86 - - -
3-Pole 76.2 66.7 152.4 105 86 177.8 105 103
4-Pole 152.4 140 86 177.8 140 103
Weight(approximate)kg 2P:0.7 3P:1 1P:0.7; 2P:1.8; 3P:2.4; 4P:3.1 2P:5.2; 3P:5.2; 4P:7.0
